# Build a Logos C++ UI module

#### Get started building a ui\_qml module with a C++ backend that runs in a separate process.

This guide covers building a module that pairs a QML user interface with a C++ backend plugin. The backend runs in a separate `ui-host` process while the QML view loads inside the host app (`logos-basecamp` or `logos-standalone-app`), so a backend crash cannot bring down the host. This guide is intended for developers who have completed [Part 1](/core/build-modules/wrap-a-c-library-as-a-logos-core-module.md) and want typed, process-isolated inter-module calls from their UI layer.

**Before you start**, make sure you have the following:

* Completed [Part 1](/core/build-modules/wrap-a-c-library-as-a-logos-core-module.md) — a working `calc_module` with the shared library built in `logos-calc-module/lib/`.
* Nix with flakes enabled.
* Basic familiarity with [QML](https://doc.qt.io/qt-6/qmlapplications.html)

## What to expect

* You can scaffold, configure, and build a `calc_ui_cpp` module with a process-isolated C++ backend.
* You can call `calc_module` methods from QML using a typed replica and `logos.watch()`.
* You will be able to build, run, and live-reload the module using `nix run`.

## Step 1: Scaffold the project

Create a new directory and initialise it from the C++ backend UI template.

1. Create and enter the project directory:

   ```bash
   mkdir logos-calc-ui-cpp && cd logos-calc-ui-cpp
   ```
2. Initialise from the template:

   ```bash
   nix flake init -t github:logos-co/logos-module-builder/tutorial-v3#ui-qml-backend
   ```
3. Initialise a Git repository and stage all generated files:

   ```bash
   git init && git add -A
   ```
4. Remove the template's example sources. The scaffolded template includes `ui_example` files with mismatched class names and IIDs; leaving them causes build errors or plugin-load failures at runtime:

   ```bash
   rm -f src/ui_example.rep src/ui_example_interface.h src/ui_example_plugin.h src/ui_example_plugin.cpp
   ```

## Step 2: Configure the module metadata

Replace the template `metadata.json` with your plugin's details.

{% hint style="info" %}
The `calc_module.url` input attribute name in `flake.nix` must match the dependency name declared here in `"dependencies"`.
{% endhint %}

1. Replace `metadata.json` with the following:

   ```json
   {
     "name": "calc_ui_cpp",
     "version": "1.0.0",
     "type": "ui_qml",
     "category": "tools",
     "description": "Calculator C++ UI — QML view with process-isolated backend for calc_module",
     "main": "calc_ui_cpp_plugin",
     "view": "qml/Main.qml",
     "icon": "icons/calc.png",
     "dependencies": ["calc_module"],

     "nix": {
       "packages": { "build": [], "runtime": [] },
       "external_libraries": [],
       "cmake": {
         "find_packages": [],
         "extra_sources": [],
         "extra_include_dirs": [],
         "extra_link_libraries": []
       }
     }
   }
   ```

   Key fields:

   * `"type": "ui_qml"` — tells the builder this is a QML view module.
   * `"main": "calc_ui_cpp_plugin"` — the backend Qt plugin library name (without extension).
   * `"view": "qml/Main.qml"` — the QML entry point.
   * `"dependencies": ["calc_module"]` — core modules the backend calls.
2. Create the icons directory and add a placeholder icon (displayed in the `logos-basecamp` sidebar when the module is loaded):

   ```bash
   mkdir -p icons
   # Copy any PNG here - or generate a 64x64 placeholder:
   echo "iVBORw0KGgoAAAANSUhEUgAAAEAAAABACAYAAACqaXHeAAAAmElEQVR4nO3QMREAIBDAsFeEN3ziCWRkoEP2XmedfX82OkBrgA7QGqADtAboAK0BOkBrgA7QGqADtAboAK0BOkBrgA7QGqADtAboAK0BOkBrgA7QGqADtAboAK0BOkBrgA7QGqADtAboAK0BOkBrgA7QGqADtAboAK0BOkBrgA7QGqADtAboAK0BOkBrgA7QGqADtAboAO0BN/SiO/PatoIAAAAASUVORK5CYII=" | base64 -d > icons/calc.png
   ```

## Step 3: Define the remote interface

The `.rep` file is the single source of truth for the interface between the QML view and the C++ backend. `repc` compiles it at build time into typed source and replica headers.

1. Create `src/calc_ui_cpp.rep`:

   ```rep
   class CalcUiCpp
   {
       SLOT(int add(int a, int b))
       SLOT(int multiply(int a, int b))
       SLOT(int factorial(int n))
       SLOT(int fibonacci(int n))
       SLOT(QString libVersion())
   }
   ```

   `repc` generates two headers from this file:

   * `rep_calc_ui_cpp_source.h` — `CalcUiCppSimpleSource` with virtual slots the backend overrides.
   * `rep_calc_ui_cpp_replica.h` — `CalcUiCppReplica` with typed methods the QML view calls.

## Step 4: Write the interface header

Create `src/calc_ui_cpp_interface.h`:

```cpp
#ifndef CALC_UI_CPP_INTERFACE_H
#define CALC_UI_CPP_INTERFACE_H

#include <QObject>
#include <QString>
#include "interface.h"

class CalcUiCppInterface : public PluginInterface
{
public:
    virtual ~CalcUiCppInterface() = default;
};

#define CalcUiCppInterface_iid "org.logos.CalcUiCppInterface"
Q_DECLARE_INTERFACE(CalcUiCppInterface, CalcUiCppInterface_iid)

#endif // CALC_UI_CPP_INTERFACE_H
```

## Step 5: Configure the CMake build

Create `CMakeLists.txt`:

```cmake
cmake_minimum_required(VERSION 3.14)
project(CalcUiCppPlugin LANGUAGES CXX)

if(DEFINED ENV{LOGOS_MODULE_BUILDER_ROOT})
    include($ENV{LOGOS_MODULE_BUILDER_ROOT}/cmake/LogosModule.cmake)
else()
    message(FATAL_ERROR "LogosModule.cmake not found. Set LOGOS_MODULE_BUILDER_ROOT.")
endif()

logos_module(
    NAME calc_ui_cpp
    REP_FILE src/calc_ui_cpp.rep
    SOURCES
        src/calc_ui_cpp_interface.h
        src/calc_ui_cpp_plugin.h
        src/calc_ui_cpp_plugin.cpp
)
```

`REP_FILE` tells `logos_module()` to run `repc` to generate source/replica headers, generate `CalcUiCppViewPluginBase`, and build a separate `calc_ui_cpp_replica_factory` shared library.

## Step 6: Write the C++ backend plugin

The backend plugin inherits three base classes:

* `CalcUiCppSimpleSource` — generated from `.rep`, provides the typed source for Qt Remote Objects.
* `CalcUiCppInterface` — standard Logos plugin interface (`name()`, `version()`).
* `CalcUiCppViewPluginBase` — generated, provides `setBackend()` and `enableRemoting()`.

1. Create `src/calc_ui_cpp_plugin.h`:

   ```cpp
   #ifndef CALC_UI_CPP_PLUGIN_H
   #define CALC_UI_CPP_PLUGIN_H

   #include <QString>
   #include <QVariantList>
   #include "calc_ui_cpp_interface.h"
   #include "LogosViewPluginBase.h"
   #include "rep_calc_ui_cpp_source.h"

   class LogosAPI;
   class LogosModules;

   class CalcUiCppPlugin : public CalcUiCppSimpleSource,
                           public CalcUiCppInterface,
                           public CalcUiCppViewPluginBase
   {
       Q_OBJECT
       Q_PLUGIN_METADATA(IID CalcUiCppInterface_iid FILE "metadata.json")
       Q_INTERFACES(CalcUiCppInterface)

   public:
       explicit CalcUiCppPlugin(QObject* parent = nullptr);
       ~CalcUiCppPlugin() override;

       QString name()    const override { return "calc_ui_cpp"; }
       QString version() const override { return "1.0.0"; }

       Q_INVOKABLE void initLogos(LogosAPI* api);

       // Slots from calc_ui_cpp.rep — return values directly. The QML replica
       // receives QRemoteObjectPendingReply; use logos.watch() in QML to get the value.
       int add(int a, int b) override;
       int multiply(int a, int b) override;
       int factorial(int n) override;
       int fibonacci(int n) override;
       QString libVersion() override;

   signals:
       void eventResponse(const QString& eventName, const QVariantList& args);

   private:
       LogosAPI* m_logosAPI = nullptr;
       LogosModules* m_logos = nullptr;
   };

   #endif // CALC_UI_CPP_PLUGIN_H
   ```

   <div data-gb-custom-block data-tag="hint" data-style="info" class="hint hint-info"><p>If the interface filename or IID symbol here doesn't match the names in <code>src/calc_ui_cpp_interface.h</code>, you will get build errors or plugin-load failures at runtime.</p></div>
2. Create `src/calc_ui_cpp_plugin.cpp`:

   ```cpp
   #include "calc_ui_cpp_plugin.h"
   #include "logos_api.h"
   #include "logos_sdk.h"

   CalcUiCppPlugin::CalcUiCppPlugin(QObject* parent) : CalcUiCppSimpleSource(parent) {}
   CalcUiCppPlugin::~CalcUiCppPlugin() { delete m_logos; }

   void CalcUiCppPlugin::initLogos(LogosAPI* api)
   {
       if (m_logos) return;
       m_logosAPI = api;
       m_logos = new LogosModules(api);

       // Register this object as the Remote Objects source so the QML replica
       // can see its properties and call its slots.
       setBackend(this);
   }

   int CalcUiCppPlugin::add(int a, int b)      { return m_logos->calc_module.add(a, b); }
   int CalcUiCppPlugin::multiply(int a, int b)  { return m_logos->calc_module.multiply(a, b); }
   int CalcUiCppPlugin::factorial(int n)        { return m_logos->calc_module.factorial(n); }
   int CalcUiCppPlugin::fibonacci(int n)        { return m_logos->calc_module.fibonacci(n); }

   QString CalcUiCppPlugin::libVersion()
   {
       return m_logos->calc_module.libVersion();
   }
   ```

## Step 7: Write the QML view

1. Create `src/qml/Main.qml`:

   ```qml
   import QtQuick
   import QtQuick.Controls
   import QtQuick.Layouts

   Item {
       id: root

       property string result: ""
       property string errorText: ""

       // Typed replica of the backend running in ui-host (generated from calc_ui_cpp.rep).
       readonly property var backend: logos.module("calc_ui_cpp")

       // The ui-host backend connects asynchronously, so the replica isn't
       // immediately usable. Track readiness reactively: isViewModuleReady()
       // is a Q_INVOKABLE (not a property), so we re-check it on the
       // onViewModuleReadyChanged signal and once at startup — never via a
       // plain property binding, which would not re-evaluate.
       property bool ready: false

       Connections {
           target: logos
           function onViewModuleReadyChanged(moduleName, isReady) {
               if (moduleName === "calc_ui_cpp")
                   root.ready = isReady && root.backend !== null
           }
       }
       Component.onCompleted: {
           root.ready = root.backend !== null && logos.isViewModuleReady("calc_ui_cpp")
       }

       // logos.watch() delivers the result of a replica slot call via callbacks.
       function callCalc(method, args) {
           if (!root.ready) {
               root.errorText = "Backend not ready"
               return
           }
           root.errorText = ""
           root.result = "..."
           logos.watch(backend[method].apply(backend, args),
               function(value) { root.result = String(value) },
               function(error) { root.errorText = String(error) }
           )
       }

       ColumnLayout {
           anchors.fill: parent
           anchors.margins: 24
           spacing: 16

           Text {
               text: "Logos Calculator (C++ backend)"
               font.pixelSize: 20
               color: "#ffffff"
               Layout.alignment: Qt.AlignHCenter
           }

           // Reactive backend-connection indicator.
           Text {
               text: root.ready ? "Connected" : "Connecting to backend..."
               color: root.ready ? "#56d364" : "#f0883e"
               font.pixelSize: 12
               Layout.alignment: Qt.AlignHCenter
           }

           RowLayout {
               spacing: 12
               Layout.fillWidth: true

               TextField { id: inputA; placeholderText: "a"; Layout.preferredWidth: 80; validator: IntValidator {} }
               TextField { id: inputB; placeholderText: "b"; Layout.preferredWidth: 80; validator: IntValidator {} }

               Button {
                   text: "Add"; enabled: root.ready
                   onClicked: root.callCalc("add", [parseInt(inputA.text) || 0, parseInt(inputB.text) || 0])
               }
               Button {
                   text: "Multiply"; enabled: root.ready
                   onClicked: root.callCalc("multiply", [parseInt(inputA.text) || 0, parseInt(inputB.text) || 0])
               }
           }

           RowLayout {
               spacing: 12
               Layout.fillWidth: true

               TextField { id: inputN; placeholderText: "n"; Layout.preferredWidth: 80; validator: IntValidator { bottom: 0 } }

               Button { text: "Factorial";       enabled: root.ready; onClicked: root.callCalc("factorial",   [parseInt(inputN.text) || 0]) }
               Button { text: "Fibonacci";       enabled: root.ready; onClicked: root.callCalc("fibonacci",   [parseInt(inputN.text) || 0]) }
               Button { text: "libcalc version"; enabled: root.ready; onClicked: root.callCalc("libVersion",  []) }
           }

           Rectangle {
               Layout.fillWidth: true
               height: 56
               color: root.errorText.length > 0 ? "#3d1a1a" : "#1a2d1a"
               radius: 8

               Text {
                   anchors.centerIn: parent
                   text: root.errorText.length > 0 ? root.errorText
                           : (root.result.length > 0 ? root.result : "Enter values and press a button")
                   color: root.errorText.length > 0 ? "#f85149" : "#56d364"
                   font.pixelSize: 15
               }
           }

           Item { Layout.fillHeight: true }
       }
   }
   ```

   Key patterns:

   * `logos.module("calc_ui_cpp")` — gets the typed replica, with auto-synced properties.
   * `logos.watch(backend.add(1, 2), ...)` — delivers a `SLOT` return value as a JS Promise.
   * The `logos` object is injected by the host at runtime — no `QtRemoteObjects` import is needed.

### Step 7.5: Use the Logos Design System in your QML (Optional)

The QML view runs inside the [`logos-standalone-app`](https://github.com/logos-co/logos-standalone-app) host app, which already has [`logos-design-system`](https://github.com/logos-co/logos-design-system) on its import path. Use its themed components directly to automatically give your module a polished, consistent look.

1. In `src/qml/Main.qml`, add the necessary imports and replace raw `Button` and `TextField` elements with design system equivalents:

   ```qml
   import Logos.Theme
   import Logos.Controls
   import Logos.Icons // optional shared icon assets

   ...

   // Instead of Button:
   LogosButton {
       text: qsTr("Add")
       onClicked: root.callCalc("add", [parseInt(inputA.text) || 0,
                                        parseInt(inputB.text) || 0])
   }

   ...

   // Instead of TextField:
   LogosTextField {
       id: inputA
       placeholderText: qsTr("a")
   }

   ...

   // Use theme colors instead of hardcoded hex values:
   Rectangle {
       color: Theme.palette.backgroundSecondary
       radius: Theme.spacing.radiusSmall
       LogosText { text: qsTr("Result"); color: Theme.palette.text }
   }
   ```
2. Explore available components by running the design system storybook in the logos-design-system repo:

   ```bash
   git clone https://github.com/logos-co/logos-design-system.git
   cd logos-design-system && nix run
   ```

   The sidebar splits components into:

   * **Controls** — designed per Figma, production-ready (`LogosButton`, `LogosBadge`, `LogosCheckbox`, `LogosComboBox`, `LogosIconButton`, `LogosPaginator`, `LogosSearchBar`, `LogosTabBar`, `LogosTable`, `LogosText`, `LogosTextField`, `LogosToolTip`, …).
   * **Controls (not designed)** — placeholders with stable APIs but unstyled visuals (`LogosDialog`, `LogosDrawer`, `LogosScrollView`, `LogosSpinner`, `LogosTextArea`, `LogosSwitch`, …). You can ship with them; they'll get the polished look applied later without you having to change your QML.

   **Theme tokens** (use these instead of hex literals or manual font sizes):

   * `Theme.palette.*` — `background`, `backgroundSecondary`, `surface`, `text`, `textSecondary`, `border`, `primary`, `success`, `warning`, `error`, `info`, `hover`, `pressed`, …
   * `Theme.spacing.*` — `tiny`, `small`, `medium`, `large`, `xlarge`, `xxlarge`, `radiusSmall`, `radiusMedium`, `radiusLarge`
   * `Theme.typography.*` — `pageTitleText` (36), `titleText` (30), `panelTitleText` (24), `subtitleText` (16), `primaryText` (14), `secondaryText` (12); `weightRegular` / `weightMedium` / `weightBold`; `publicSans`
   * `Logos.Icons.LogosIcons.*` — `arrowLeft`, `arrowRight`, `refresh`, `install`, `trash`, `more`, `search`, …

## Step 8: Configure the Nix flake

The template already wires everything up. Update the description and point `calc_module` at your dependency.

1. Replace `flake.nix` with the following:

   ```nix
   {
     description = "Calculator C++ UI plugin for Logos - QML view with process-isolated backend for calc_module";

     inputs = {
       logos-module-builder.url = "github:logos-co/logos-module-builder/tutorial-v3";

       # Keep this placeholder as is - it gets locked to your real path in the next step.
       calc_module.url = "path:/path/to/your/calc_module";
     };

     outputs = inputs@{ logos-module-builder, calc_module, ... }:
       logos-module-builder.lib.mkLogosQmlModule {
         src = ./.;
         configFile = ./metadata.json;
         flakeInputs = inputs;
       };
   }
   ```

   To point at a published repo instead of a local path, change the `calc_module.url` input to a `github:` URL, for example `calc_module.url = "github:<your-org>/<your-calc-module>";`.

## Step 9: Build and run the module

Before building, confirm the `calc_module` shared library is present from [Part 1](/core/build-modules/wrap-a-c-library-as-a-logos-core-module.md).

1. Confirm the shared library exists:

   ```bash
   # Linux
   ls ../logos-calc-module/lib/libcalc.so

   # macOS
   ls ../logos-calc-module/lib/libcalc.dylib
   ```

   If the file is missing, build it first:

   ```bash
   cd ../logos-calc-module/lib
   gcc -shared -fPIC -o libcalc.so libcalc.c     # Linux
   # gcc -shared -fPIC -o libcalc.dylib libcalc.c  # macOS
   cd ../../logos-calc-ui-cpp
   ```
2. Stage all files, then lock `calc_module` to your local Part 1 checkout. The `--override-input` flag resolves `../logos-calc-module` to an absolute path and records it in `flake.lock`:

   ```bash
   git add -A
   nix flake update --override-input calc_module path:../logos-calc-module
   git add flake.lock
   ```
3. Build and run the app. After the lock is in place, no override flag is needed on subsequent commands:

   ```bash
   nix run
   ```

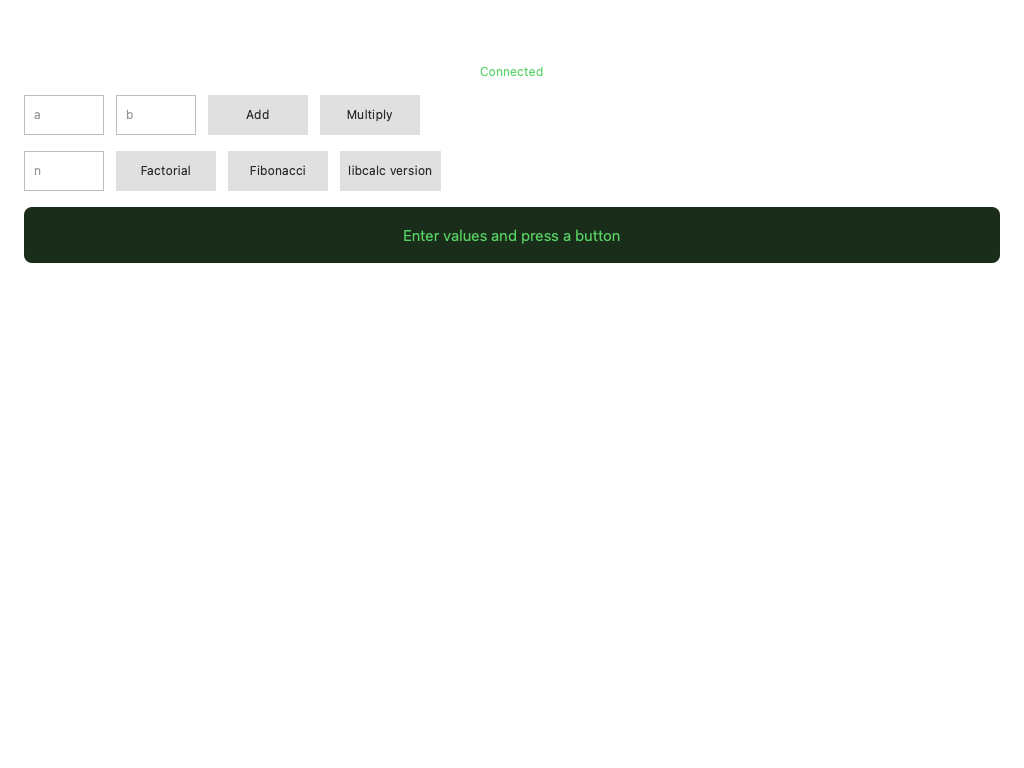

4. Confirm the view loads with all controls visible, then click **Add** with values in the input fields to test it out:

   ![Operation buttons visible](/files/36FCYovWchrJydhXgkf3)

   ![Result of 3 + 5 shows 8](/files/1XqQ5b50R7Rk3R2f3Bar)

## Step 10: Update view with live reloading (Optional)

To enable live updates to the UI, set `DEV_QML_PATH` to the directory that contains your view entry's basename. This tutorial sets `"view": "qml/Main.qml"` in `metadata.json`, so the directory must contain `Main.qml` (here: `src/qml/`).

1. Run with `DEV_QML_PATH` set so that QML is loaded from your source tree at runtime:

   ```bash
   DEV_QML_PATH=$PWD/src/qml nix run .
   ```

## Step 11: Add UI integration tests (Optional)

Add automated UI tests using the [logos-qt-mcp](https://github.com/logos-co/logos-qt-mcp) test framework.

1. Create `tests/ui-tests.mjs`:

   ```javascript
   import { resolve } from "node:path";

   // CI sets LOGOS_QT_MCP automatically; for interactive use: nix build .#test-framework -o result-mcp
   const root =
     process.env.LOGOS_QT_MCP ||
     new URL("../result-mcp", import.meta.url).pathname;
   const { test, run } = await import(
     resolve(root, "test-framework/framework.mjs")
   );

   test("calc_ui_cpp: loads and shows title", async (app) => {
     await app.waitFor(
       async () => {
         await app.expectTexts(["Logos Calculator (C++ backend)"]);
       },
       { timeout: 15000, interval: 500, description: "UI to load" },
     );
   });

   test("calc_ui_cpp: operation buttons visible", async (app) => {
     await app.expectTexts(["Add", "Multiply", "Factorial", "Fibonacci"]);
   });

   run();
   ```
2. Stage the test file and run the hermetic CI test:

   ```bash
   git add tests/
   nix build .#integration-test -L
   ```

   The `integration-test` output launches `logos-standalone-app` with `QT_QPA_PLATFORM=offscreen` (no display needed), connects to the QML inspector, and runs all `.mjs` files in `tests/`.
3. To run tests interactively against an already-running app, build the test framework and run the app and tests in separate terminals:

   ```bash
   nix build .#test-framework -o result-mcp
   nix run .                    # terminal 1 — app with inspector on :3768
   node tests/ui-tests.mjs      # terminal 2
   ```

## Troubleshooting the C++ UI module build

### The plugin fails to load at runtime with no clear error

Confirm the `Q_PLUGIN_METADATA` IID and `Q_DECLARE_INTERFACE` macro in `calc_ui_cpp_interface.h` both use `CalcUiCppInterface_iid`. A mismatch causes silent load failures.

### Linker errors during `nix build`

Confirm `../logos-calc-module/lib/libcalc.so` for Linux (or `.dylib` on macOS) exists and that `flake.lock` was updated with `--override-input calc_module path:../logos-calc-module`. A stale or placeholder lock file is the most common cause.

### `DEV_QML_PATH` does not seem to take effect

Confirm the path points at the directory containing `Main.qml` directly — not a parent directory. The host looks for the basename from `"view"` in `metadata.json` inside the directory you provide.


---

# Agent Instructions
This documentation is published with GitBook. GitBook is the documentation platform designed so that both humans and AI agents can read, navigate, and reason over technical content effectively. Learn more at gitbook.com.

## Querying This Documentation
If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question.

Perform an HTTP GET request on the current page URL with the `ask` query parameter:

```
GET https://docs.logos.co/core/build-modules/build-a-logos-cpp-ui-module.md?ask=<question>
```

The question should be specific, self-contained, and written in natural language.
The response will contain a direct answer to the question and relevant excerpts and sources from the documentation.

Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
