Bridge assets from Logos Blockchain to a Zone using the Logos Blockchain app

Get started locking wallet notes into a Logos Zone, including the LEZ, using the Logos Blockchain UI app.​

Version

This document is accurate for Testnet v0.3.0.

This procedure covers how to lock one or more of your wallet notes (UTXOs) into a Logos Zone (such as the LEZ) using the Logos Blockchain desktop app, and receive the resulting transaction hash. It is intended for wallet users on Testnet v0.3 who need to fund a channel without hand-assembling note IDs, keys, and fees on a CLI.

Prerequisites
  • The Blockchain UI app running, with the node Online.
  • At least one wallet account with a positive balance, for example one funded by mining.
  • The channel ID of the target Zone. For the public LEZ testnet, the LEZ testnet checkbox in the deposit wizard fills it in for you.
  • For a LEZ deposit, a public account in the LEZ wallet UI to receive the funds.

What to expect​

  • You can select one or more wallet notes and lock their full value into a channel through a four-step wizard.
  • You can review the exact deposit payload, including channel ID, notes, keys, fee, and metadata, before submitting.
  • You can confirm the deposit succeeded by finding the returned transaction hash in the Explorer tab, where the transaction carries a Channel Deposit operation.
  • You can see a LEZ deposit arrive in your LEZ wallet about an hour after it is included in a block.

Submit a deposit​

The wizard collects the deposit payload across two input steps and a review step, then submits it on confirmation. A Step N of 4 counter in the top-right corner shows where you are.

  1. Click the Wallet tab, then click Channel Deposit in the left menu.

    • The deposit wizard opens at Step 1 of 4.
    • While the node cannot answer, a notice at the top of the wizard says why, for example Start the node from the Node tab.

  2. On Step 1 of 4, choose the account to deposit from in Deposit from.

    • The account's notes load automatically. Choosing a different account reloads them.

  3. Select one or more notes. The counter below the list shows how many notes are selected and their total. Next is enabled once at least one note is selected; the full value of each selected note is consumed. Click Next.

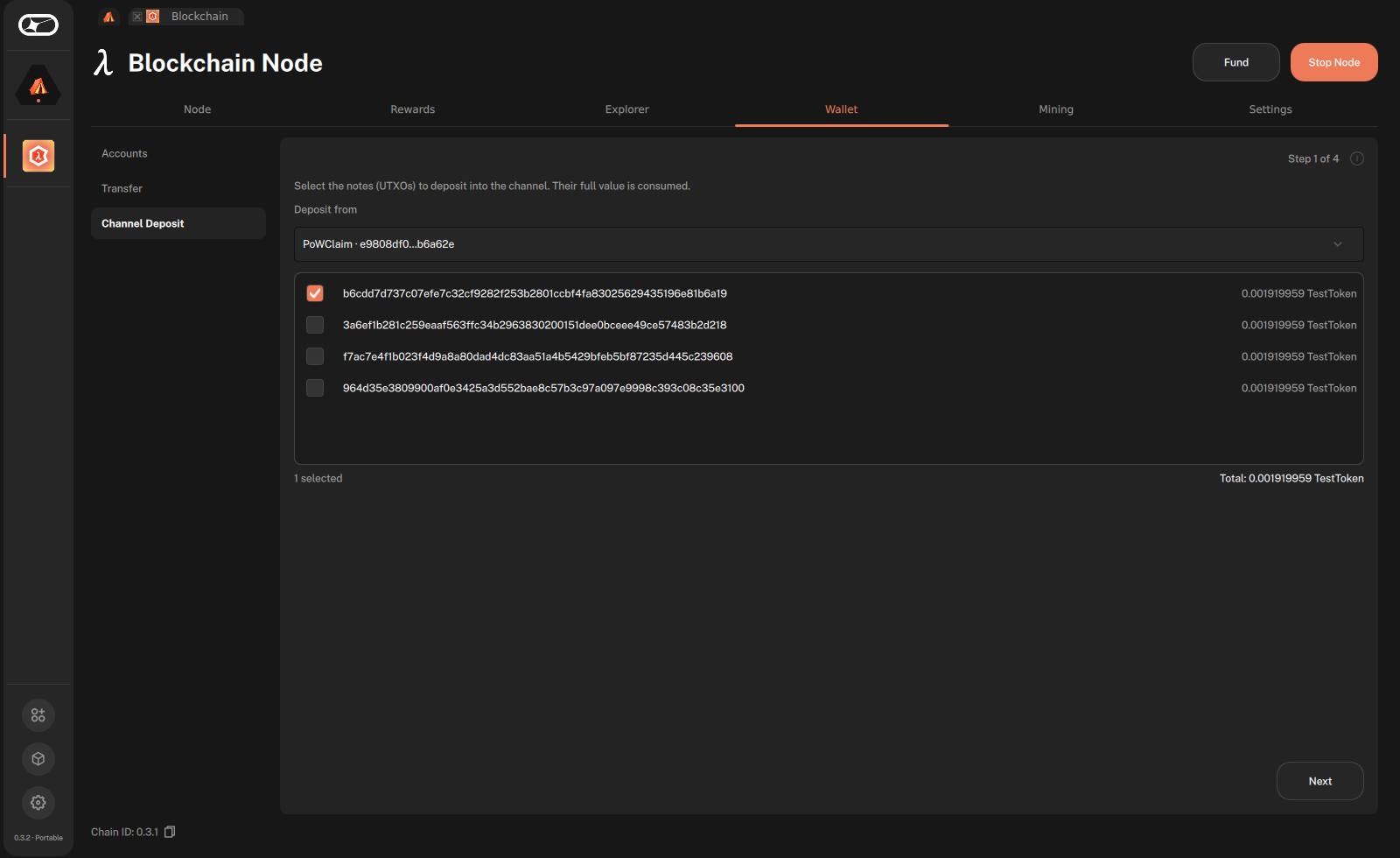

    Step 1 of 4 with one note selected

  4. On Step 2 of 4, enter the deposit parameters:

    • Channel ID hex: the target channel. For the public LEZ testnet, select LEZ testnet and the app fills in the channel ID. For any other Zone, paste the 64-hex-character channel ID.

    • Change goes to: the account that receives any leftover value. It defaults to the account you deposit from.

    • Accounts funding the gas fee: the accounts the node draws the transaction fee from. The account you deposit from is added for you. To add another, choose it in the Account… dropdown and click Add.

    • Max tx fee: the maximum fee you allow, in TestToken.

    • Metadata (base58, optional): data for the Zone, usually specific to it. For the LEZ, paste the ID of the public account that receives the deposit: in the LEZ wallet UI, click the copy button next to one of your public accounts. For other Zones, leave it empty if the Zone does not need any.

      warning

      A LEZ deposit without a public account ID in Metadata is locked on the Logos Blockchain but never credited on the LEZ.

    • Optional tip hex (leave empty for current tip): the chain tip the deposit is built against. Leave it empty to use the node's current tip, or click Use query tip to use the tip that the notes were loaded at.

    • Next is enabled once the channel ID, change account, at least one funding account, and max fee are present, and any metadata entered is valid base58. Click Next.

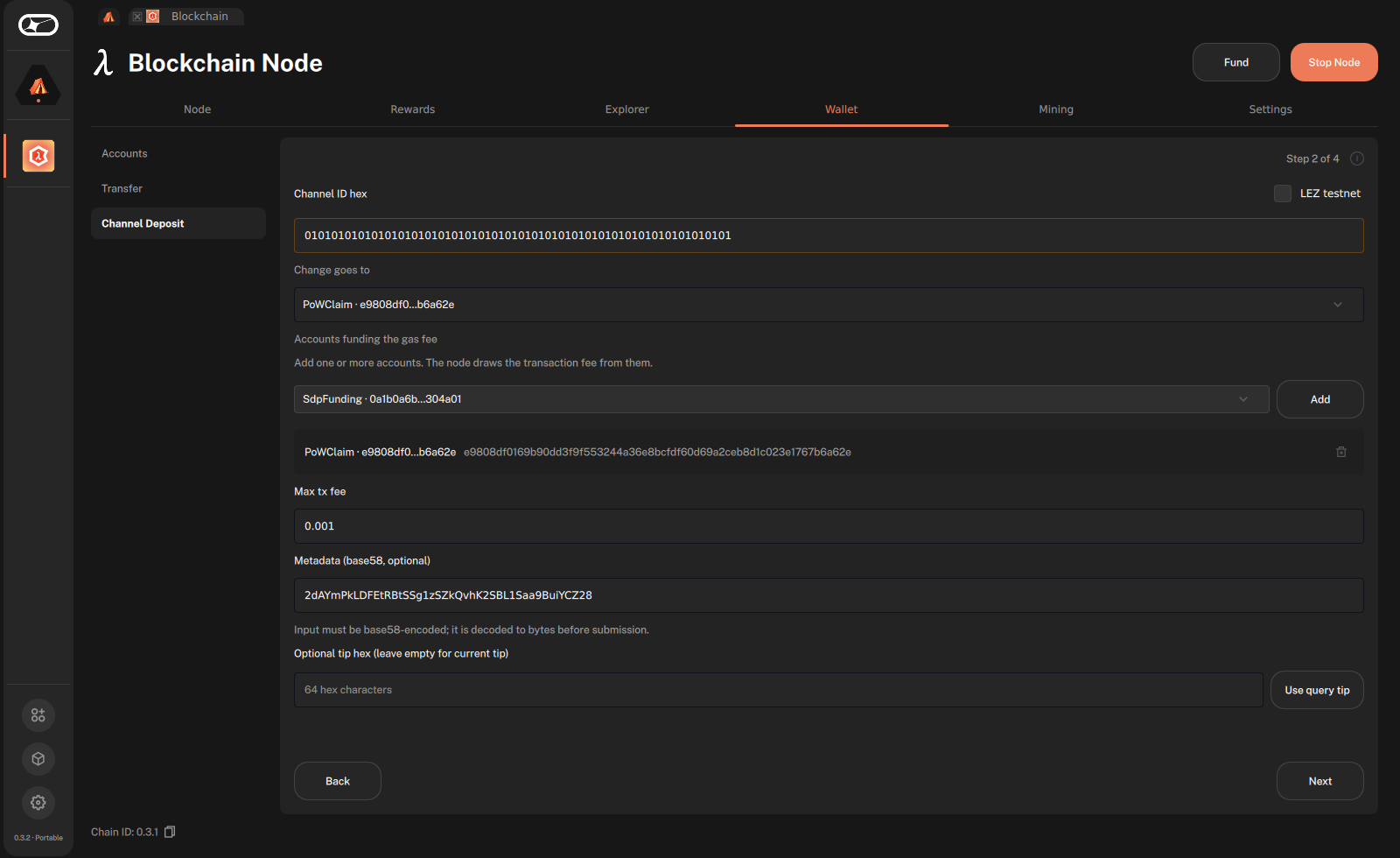

    Step 2 of 4 with the LEZ testnet channel ID and a LEZ account ID in Metadata

  5. On Step 3 of 4, review the exact payload: channel ID, notes to consume and total amount, change and funding public keys, max transaction fee, metadata, and tip. Then click Confirm & deposit.

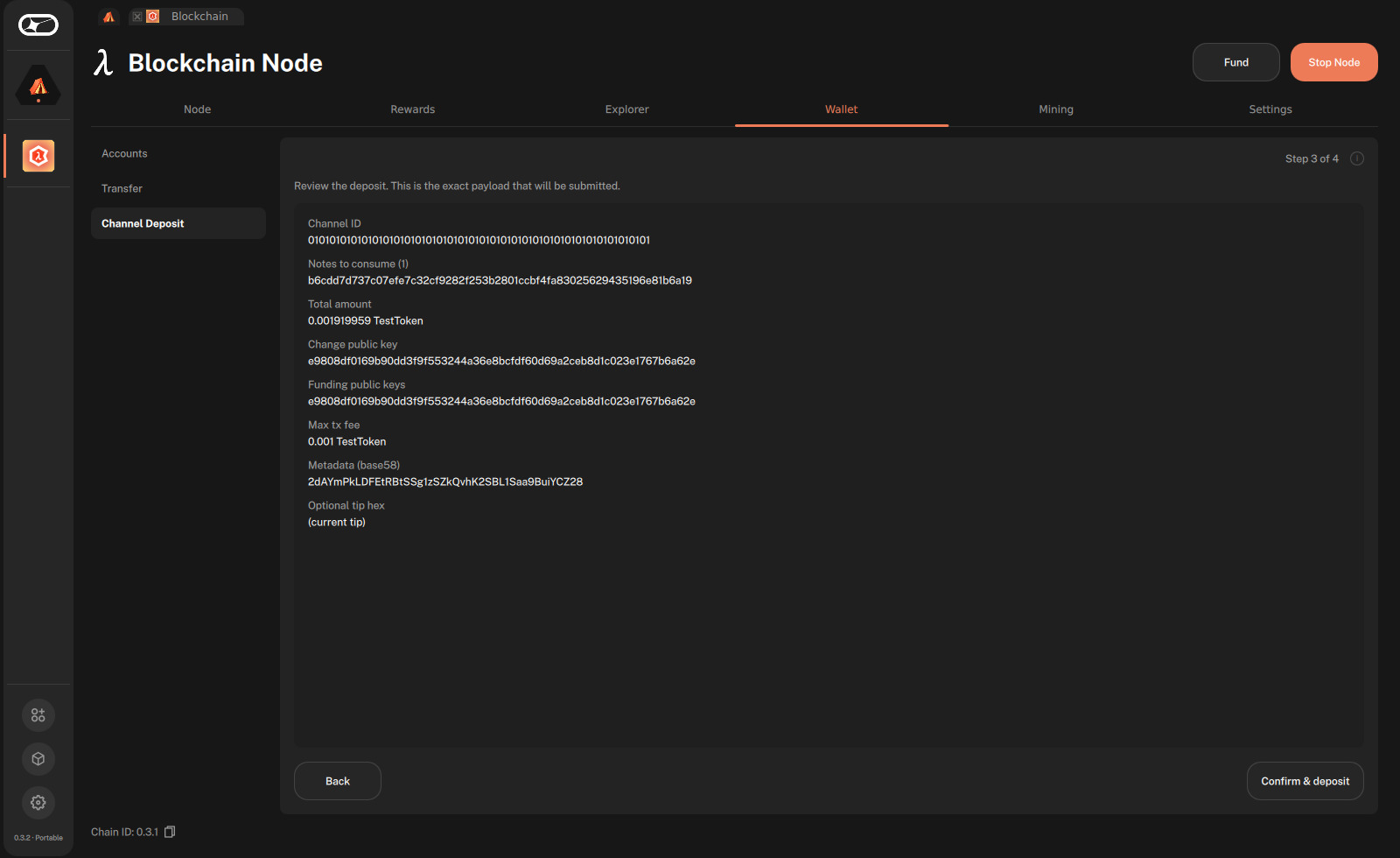

    Step 3 of 4, the deposit review

    warning

    Review the information carefully. Deposits are irreversible once included in a block.

Read the deposit result​

  1. On Step 4 of 4, wait while the wizard shows Submitting deposit…, then read the result:

    • On success, the wizard shows Deposit submitted with the transaction hash. Click the copy button to copy it.
    • On failure, the wizard shows Deposit failed with the error message.

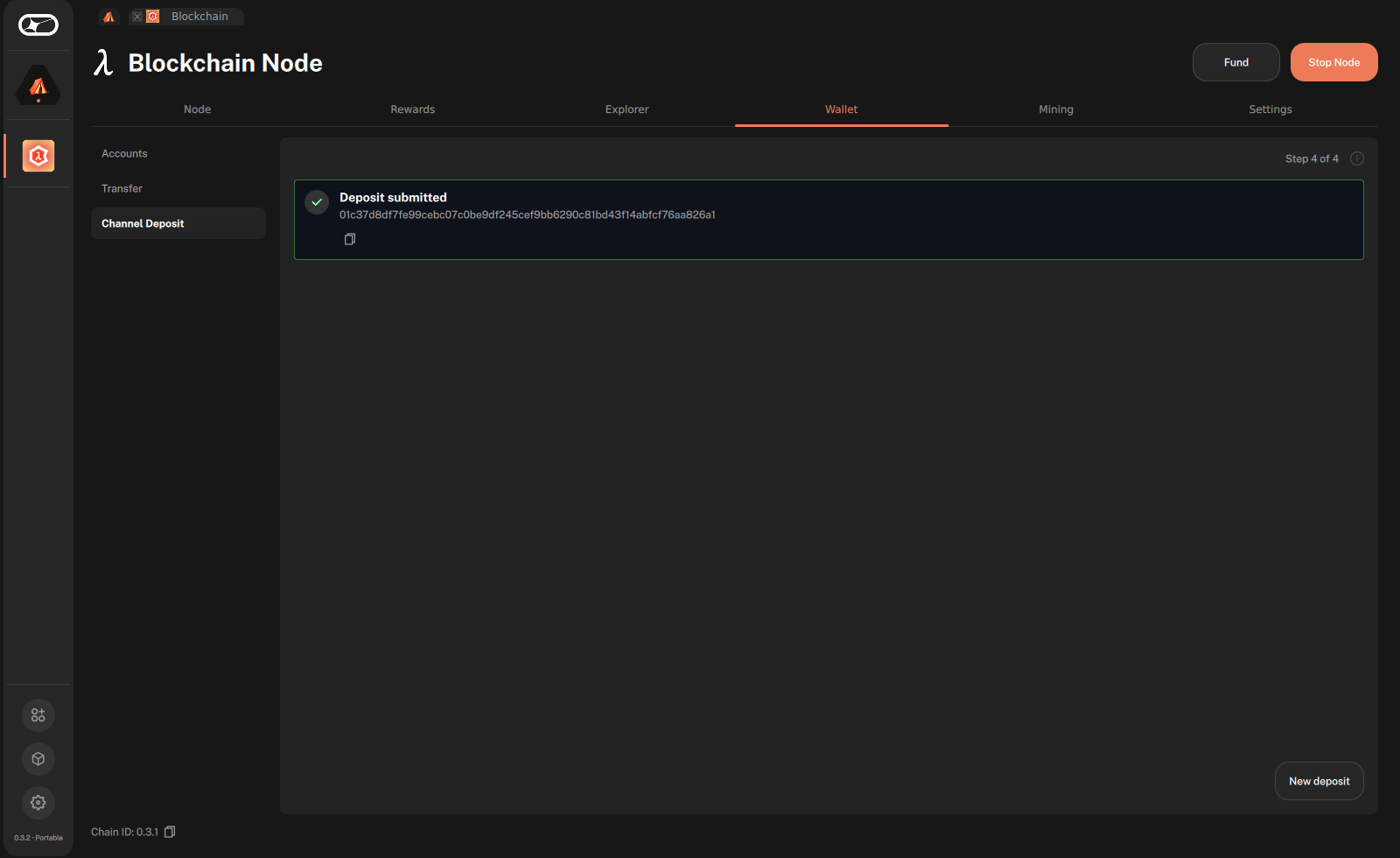

    Step 4 of 4 showing Deposit submitted

  2. Click New deposit to reset the wizard for another deposit.

  3. Confirm the transaction on chain. Open the Explorer tab, paste the transaction hash in Search a block id or transaction hash, and press Enter.

    • The result shows the transaction and the slot of the block it was included in. Its operation is labelled Channel Deposit (op 18).
    • If the result reads Nothing found for “<hash>”., the transaction is not in a block yet. Wait for a few blocks and search again.

  4. For a LEZ deposit, wait for the funds to arrive in the LEZ wallet. The LEZ credits a deposit only once the block that includes it is final on the Logos Blockchain, which takes 120 blocks, or about an hour on the testnet. The deposit is then credited in the next LEZ block.

    • To check, open the LEZ wallet UI and click Refresh in the Accounts panel. The public account whose ID you pasted in Metadata shows the deposited amount added to its balance.

Troubleshooting channel deposits​

Confirm & deposit is disabled​

The node is not running. Start it with Start Node in the header and wait for the Node tab to read Online before submitting.

The note list reads This account holds no notes to deposit.​

Either the account has no spendable notes, or the node was not running when you chose the account, so its notes were never loaded.

  • If the node was not running, start it and wait for it to reach Online mode. Then choose a different account in Deposit from, and choose yours again to reload its notes.
  • If the node was running, the account has nothing to deposit. Fund it first, or choose another account.

The LEZ testnet checkbox is missing​

The app has no LEZ channel ID: either it could not read the one built into its metadata.json, or it was built from master, which has none. Get the channel ID from the LEZ testnet and paste it in Channel ID hex:

curl https://testnet.lez.logos.co/ \
 -H "Content-Type: application/json" \
 -d "{ \
     \"jsonrpc\": \"2.0\", \
     \"method\": \"getChannelId\", \
     \"params\": {}, \
     \"id\": 1 \
 }"

Next stays disabled on Step 2 of 4​

A required field is missing or invalid:

  • The channel ID is not 64 hex characters. The field shows A channel ID is 64 hex characters (32 bytes).
  • No change account or funding account is selected, or Max tx fee is empty.
  • The metadata is not valid base58. The field shows Invalid base58 input.

The wizard shows Deposit failed​

The module rejected the transaction. Common causes are insufficient funds to cover the selected notes plus the maximum transaction fee, an invalid channel ID or key, or a rejected or expired tip. The exact error is shown in the result step.

The deposit does not show up in the LEZ wallet​

  • Less than an hour has passed since the deposit was included in a block. The LEZ credits it only once that block is final on the Logos Blockchain. Wait, then click Refresh in the Accounts panel of the LEZ wallet again.
  • Metadata did not hold the ID of a public LEZ account. The LEZ cannot credit such a deposit.
