Run a Logos Blockchain node from Basecamp

Install the blockchain modules and run a syncing testnet node from the Basecamp desktop app.

Version

This document is accurate for Testnet v0.3.

The Logos Blockchain is the blockchain module of the Logos technology stack. You can run a node from the CLI or from Basecamp, the local-first launcher for peer-to-peer apps built on Logos, by installing the blockchain module and its UI.

This procedure covers running the Logos Blockchain app via Basecamp, setting up a node through the onboarding wizard, confirming that it syncs, and funding its wallet so it can propose blocks.

Prerequisites

• Basecamp installed and running.
• A graphical desktop session on one of:
  • Linux (tested on Ubuntu 24.04)
  • Windows 11 with WSL2 (plus WSLg for the GUI)
  • Apple Silicon Mac (M1 or later).
• CPU: 2 Cores, 2Ghz. Modern multi-core processor. Must have ADX instruction support (on x86_64), such as Intel Broadwell or later, or any AMD Zen. On virtual machines, configure the hypervisor to pass through host CPU features. Generic CPU models such as kvm64 and qemu64 hide ADX and cause the blockchain module to crash with signal 4.
• Memory (RAM): Minimal (1 Gb).
• Storage:
  • For joining the testnet or a short-lived node: SSD with 1-2 GB free.
  • Expected for a long-lived mainnet node: SSD with 100+ GB free with ability to expand storage on demand.
• Network: Relatively reliable network connection. 1Mbps of free bandwidth.

Port forwarding is not required. A blockchain node participates outbound-only: it syncs, validates, and (once funded) proposes blocks. Forwarding only makes your node reachable so others can use it, which is out of scope here.

What to expect

By the end of this procedure:

• Basecamp will be running the Logos Blockchain app.
• Your node will be connected to testnet peers and syncing the chain.
• You will confirm sync by observing an advancing block height.
• Optionally, you can fund your wallet by mining so your node proposes blocks.

Step 1: Install and launch the blockchain app

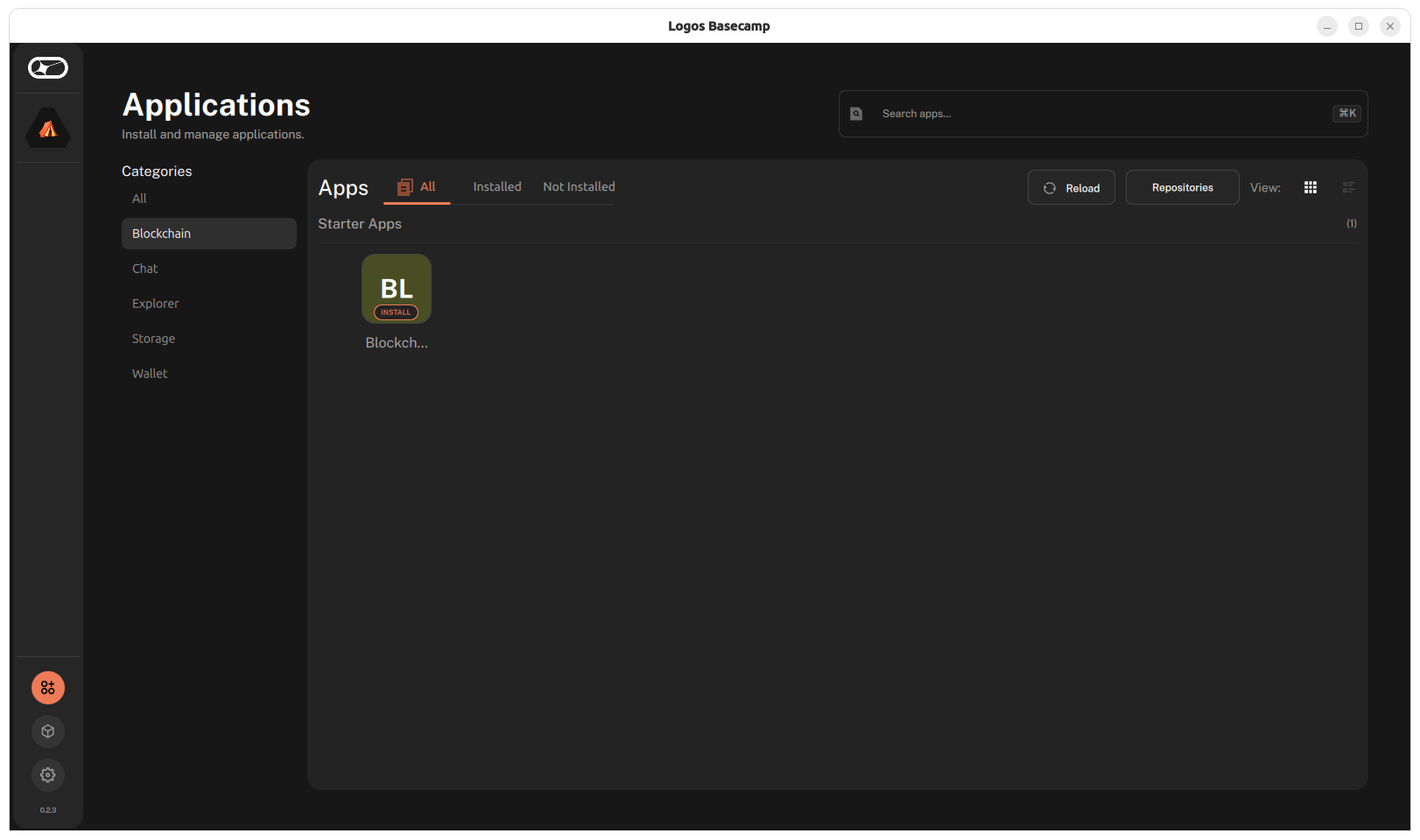

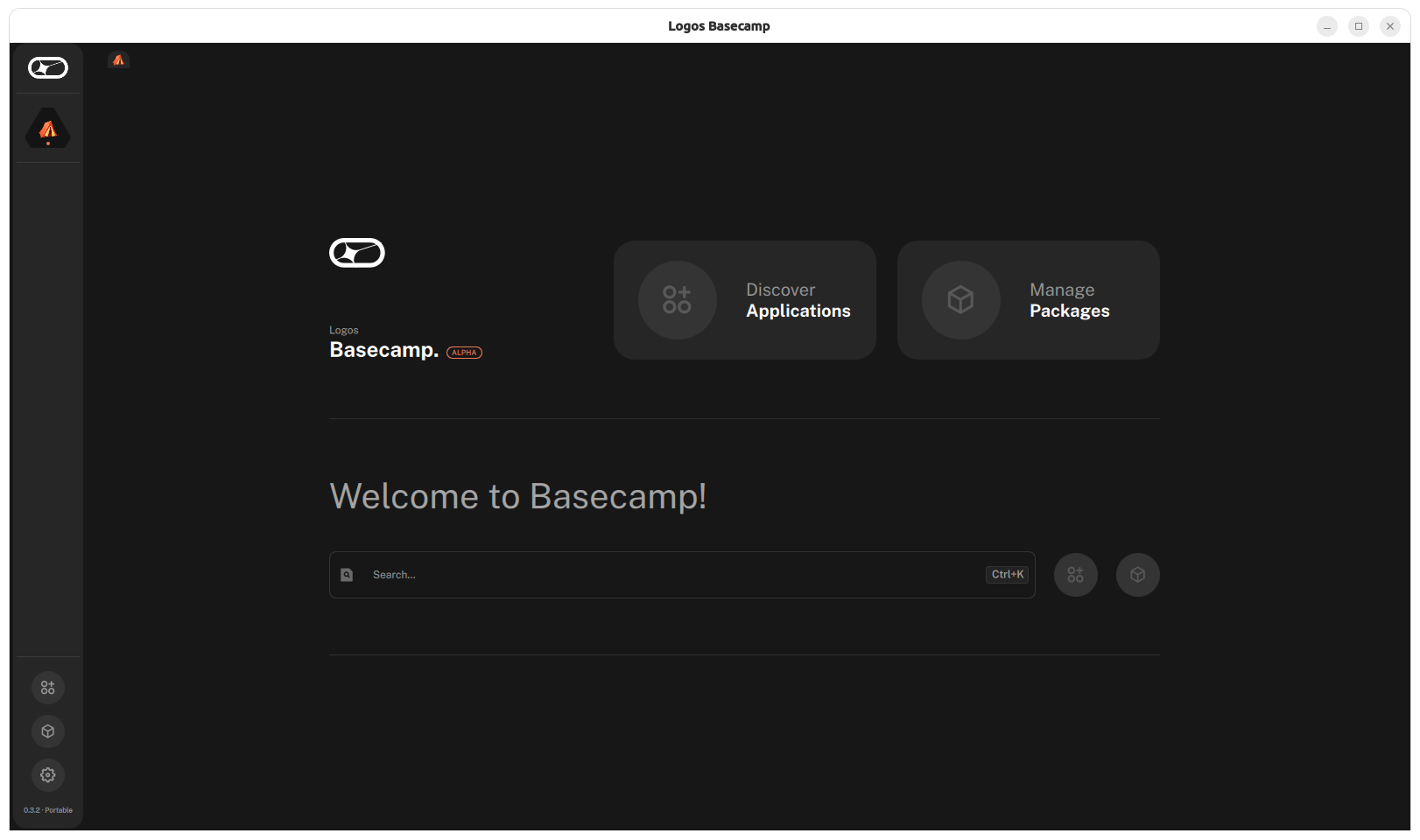

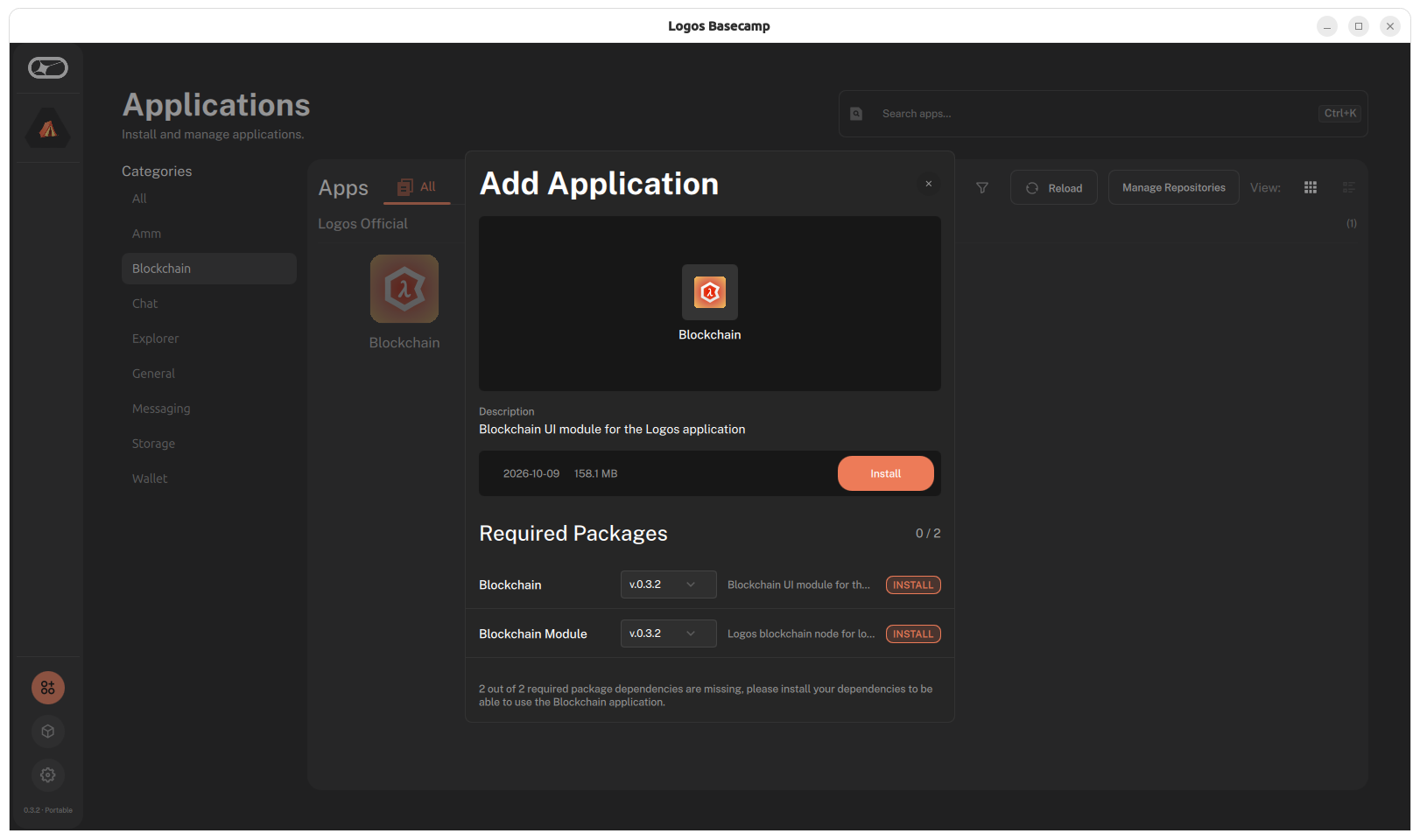

1. In Basecamp, press Discover Applications on the home screen or the top button of the group at the bottom of the sidebar on the left to open the Applications section.



2. In the Blockchain category, select Blockchain.

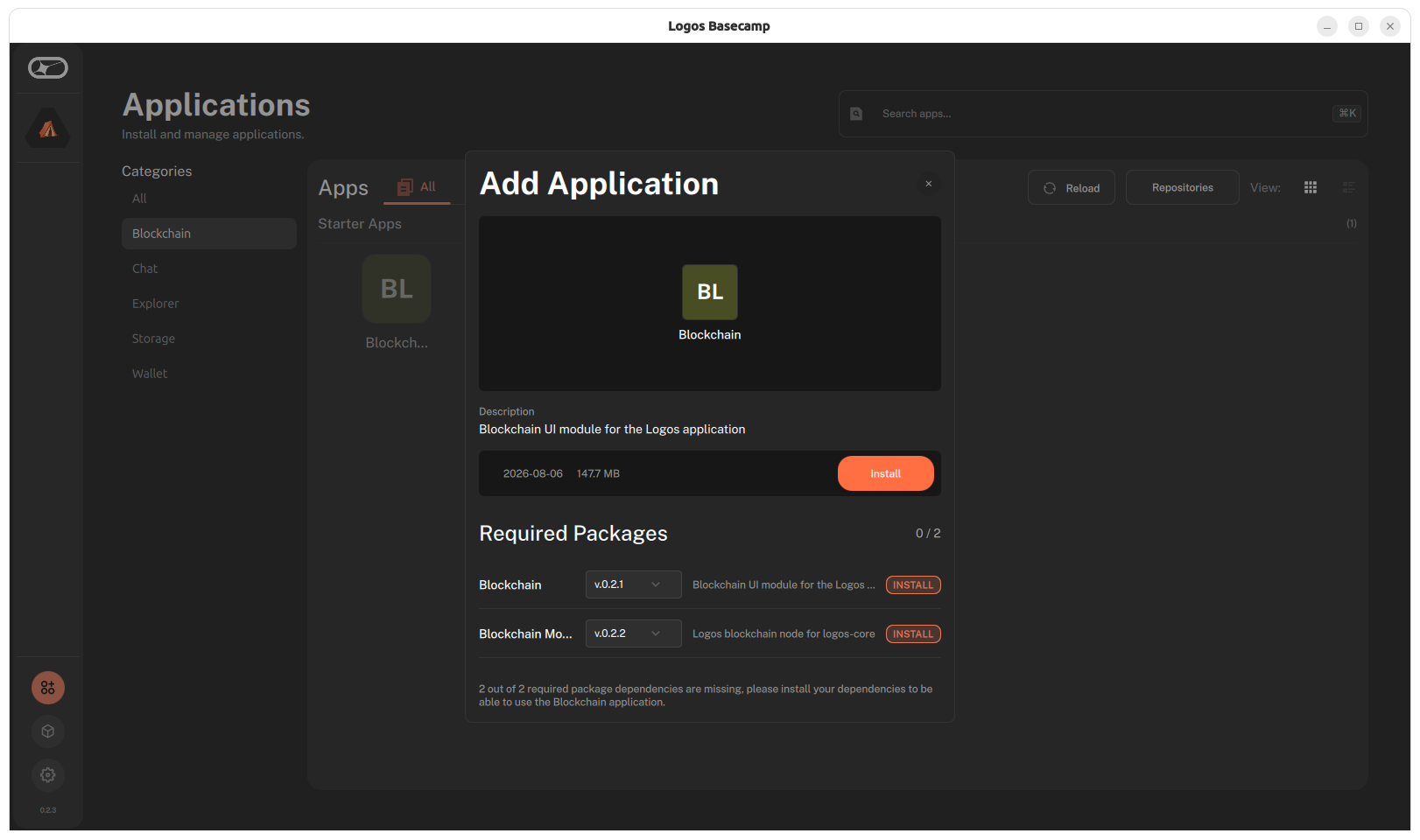

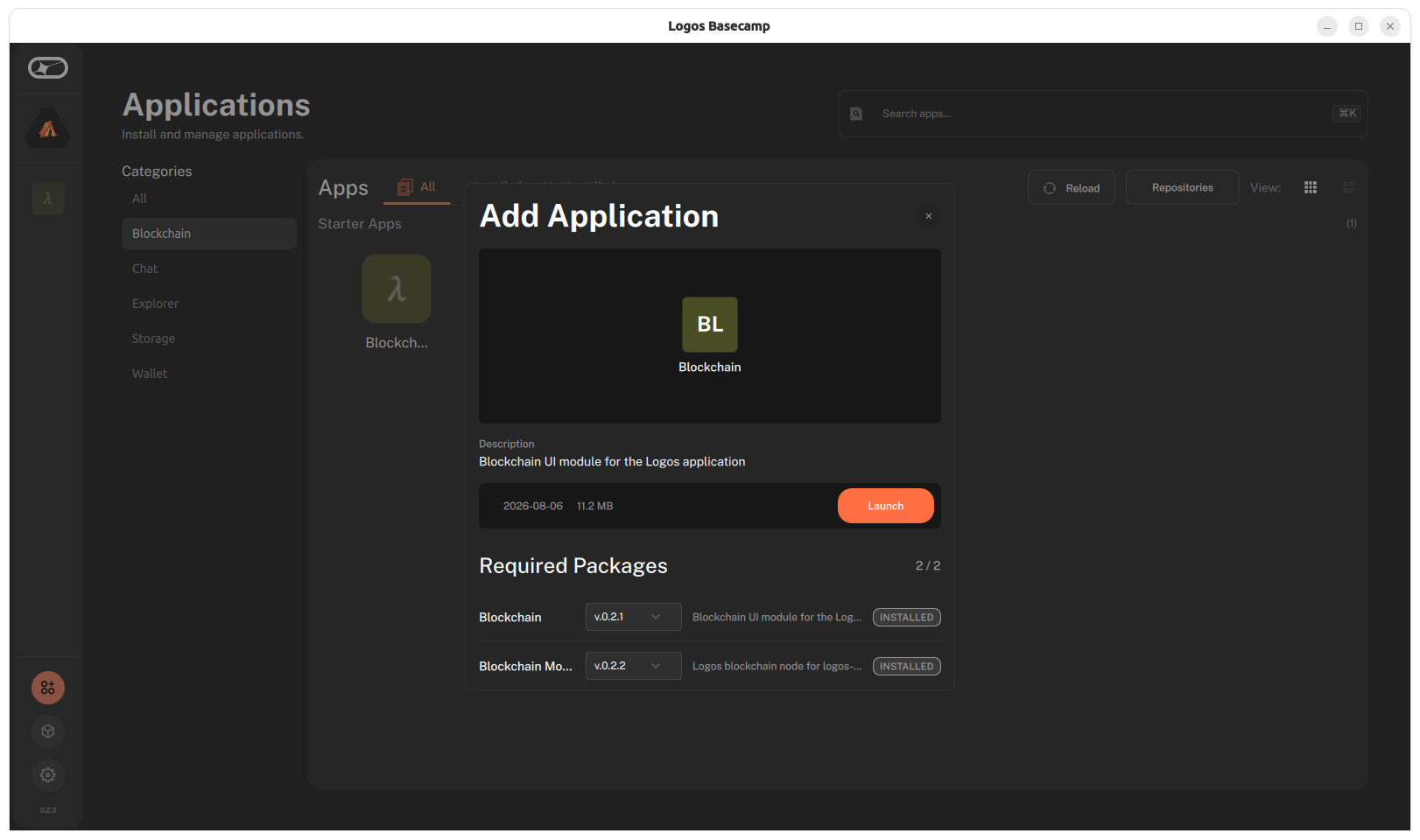

3. Make sure that Blockchain (the UI module) is set to v0.3.2 and Blockchain Module (the core module) is set to v0.3.2, then click Install.



   note

   Individual package versions are pinned independently and do not necessarily match the testnet version number.

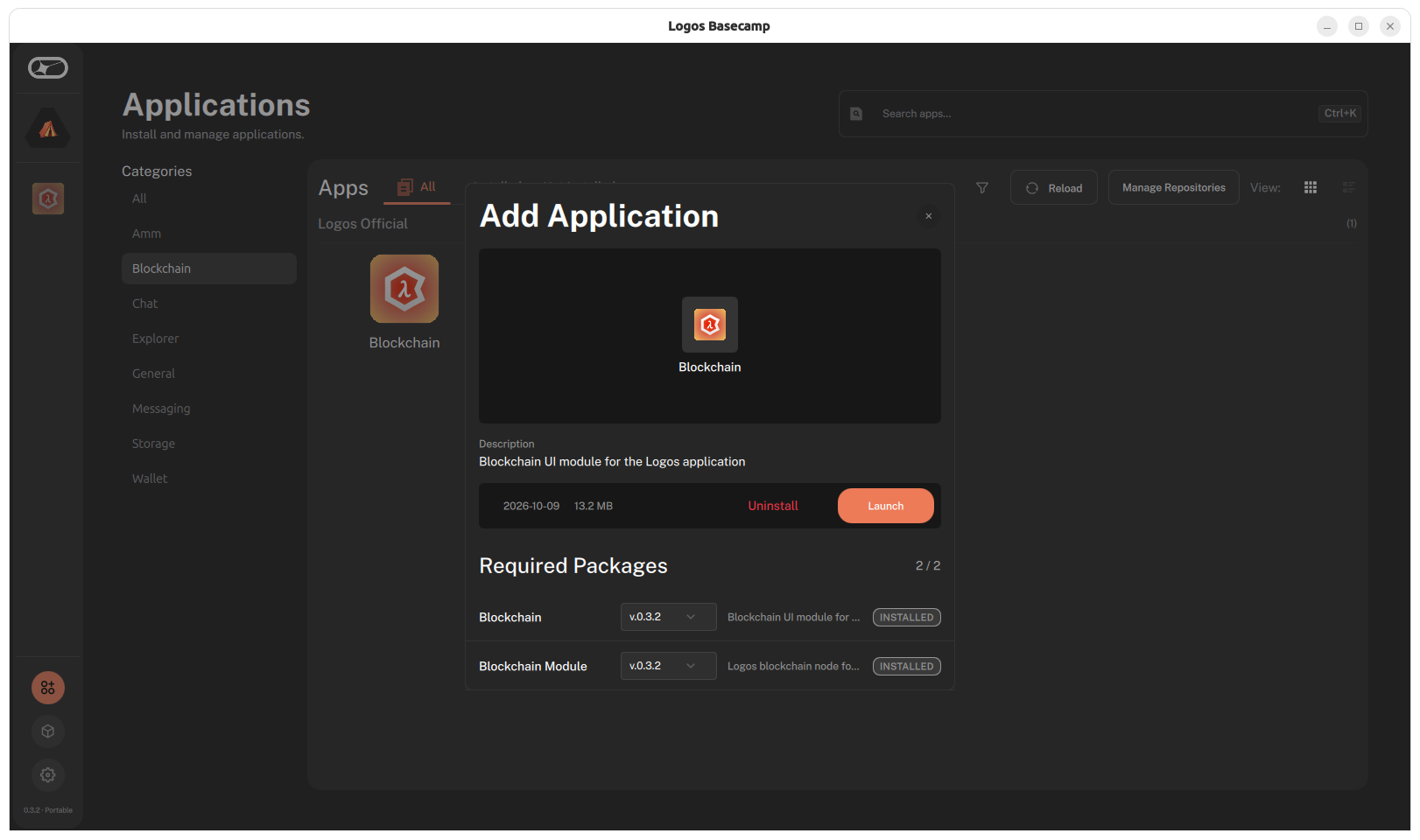

4. Once the modules are installed, press Launch.



   • The Blockchain app will open.

Step 2: Start the Node

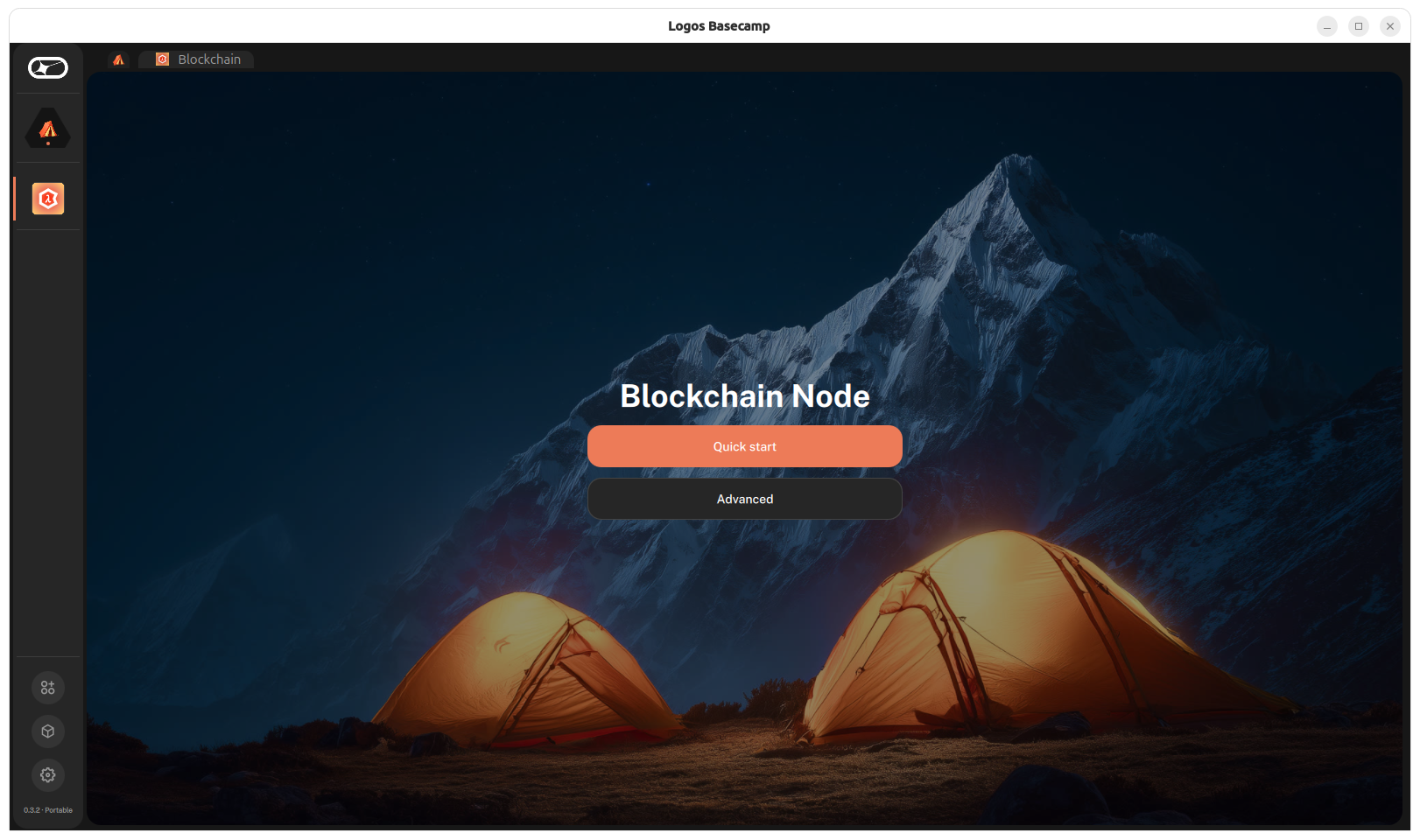

On first run, the app opens on a welcome screen titled Blockchain Node. A node needs a config and a keystore before it can start.

The welcome screen offers Quick start and Advanced. Quick start generates a config for the public testnet with the bootstrap peers built into the release, creates your keys, and starts the node. To walk through the same choices one at a time, or to reuse a config you already have, click Advanced and follow Step-by-step setup instead.

Quick start

1. Click Quick start.

• The screen reads Setting up your node… while the app writes your config, creates your keys, and starts the node. The node view then opens.

1. Open the Settings tab. Until you back up your keys, the Node tab shows a Back up your keys notice that points here.

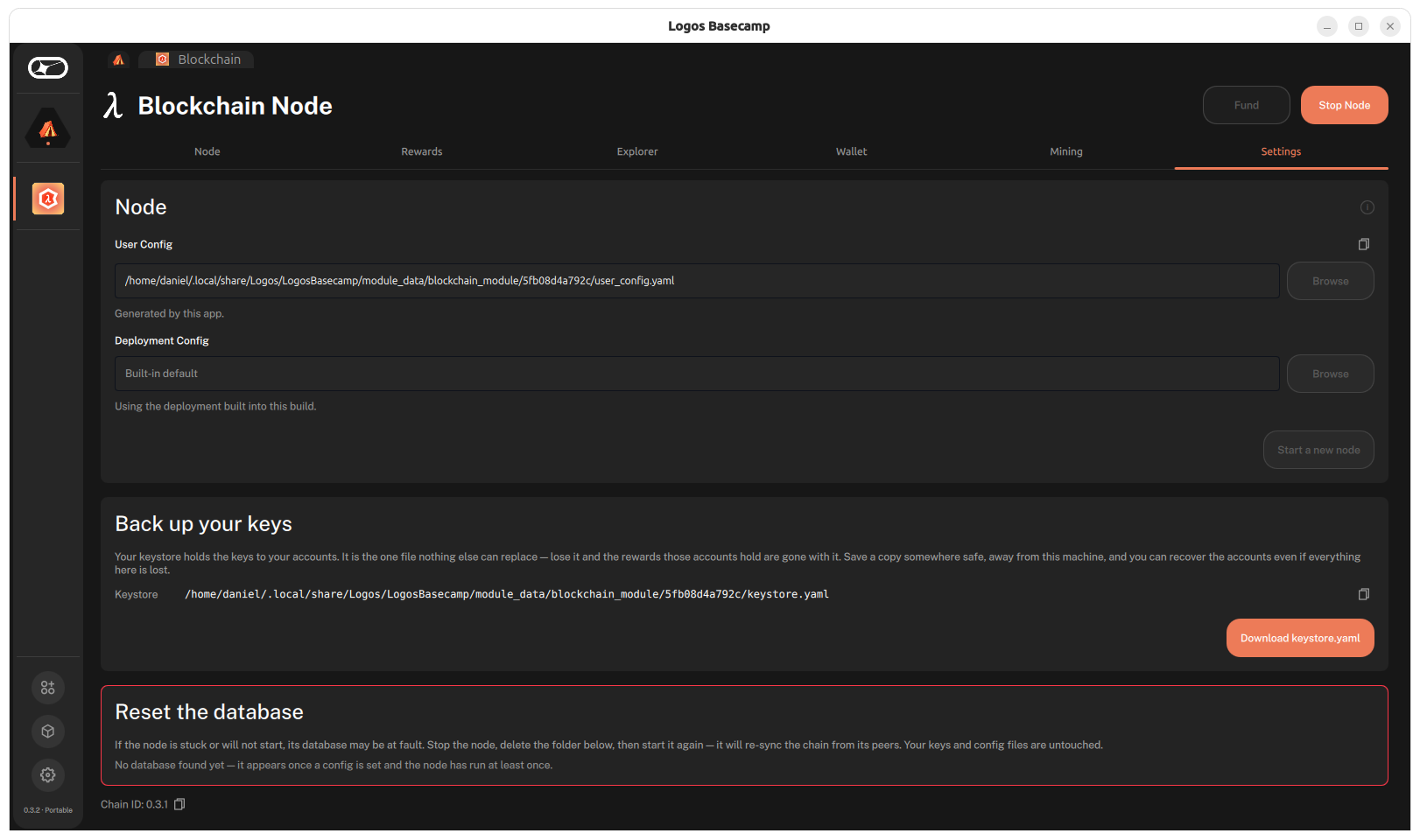

2. In the Back up your keys card, click Download keystore.yaml and choose where to save the copy.

• A Keystore saved message confirms the backup, and the card shows a Done badge.

warning

Your keystore holds the keys to your accounts, stake, and rewards. Nothing can reissue them. Keep the copy somewhere other than this machine.

Step-by-step-setup

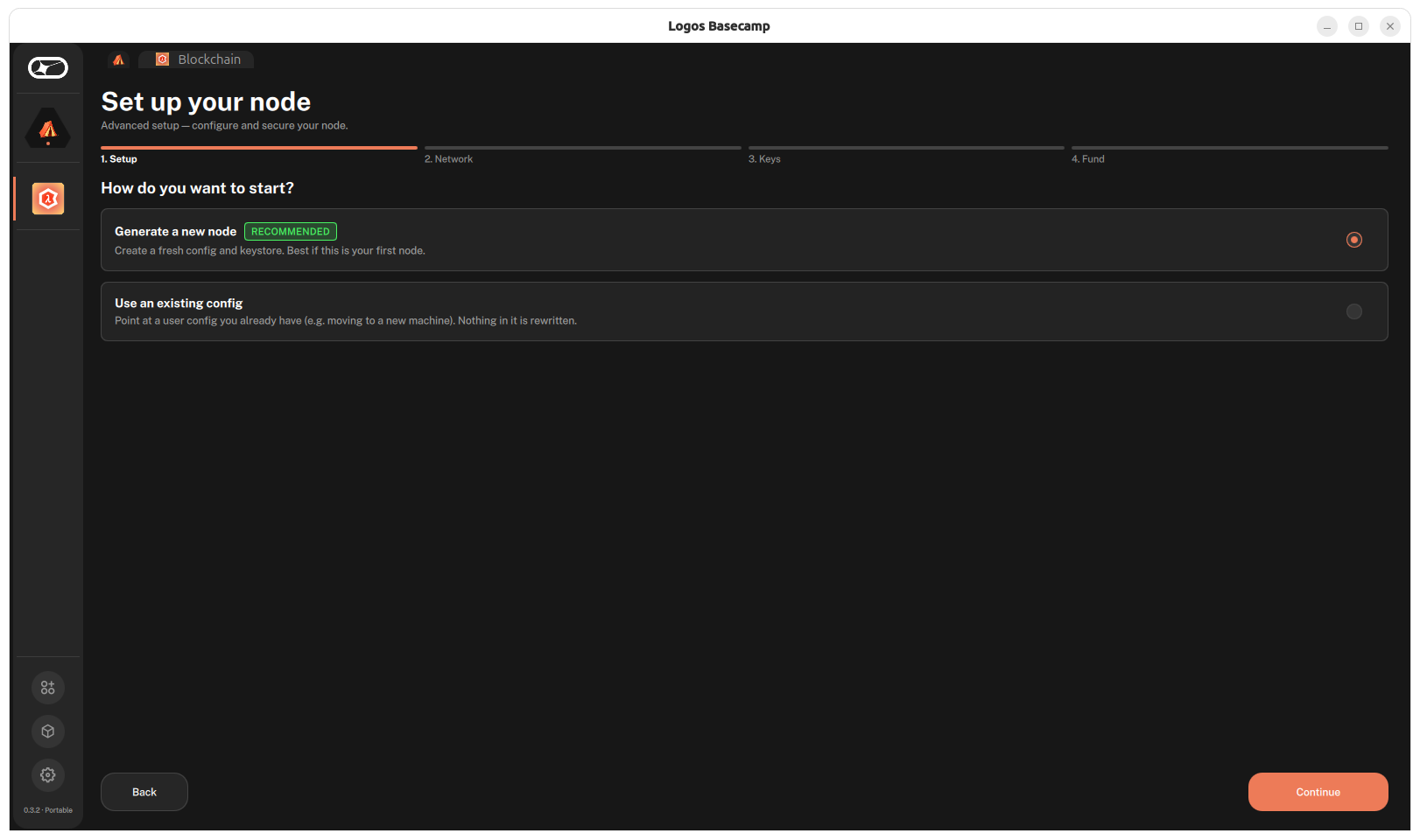

1. Click Advanced. The Set up your node wizard opens on step 1. Setup.

2. Under How do you want to start?, select Generate a new node and click Continue.



   • To reuse files you already have, select Use an existing config instead, fill in User config (and optionally Deployment) under Point to your files, and click Start node. The wizard ends there.

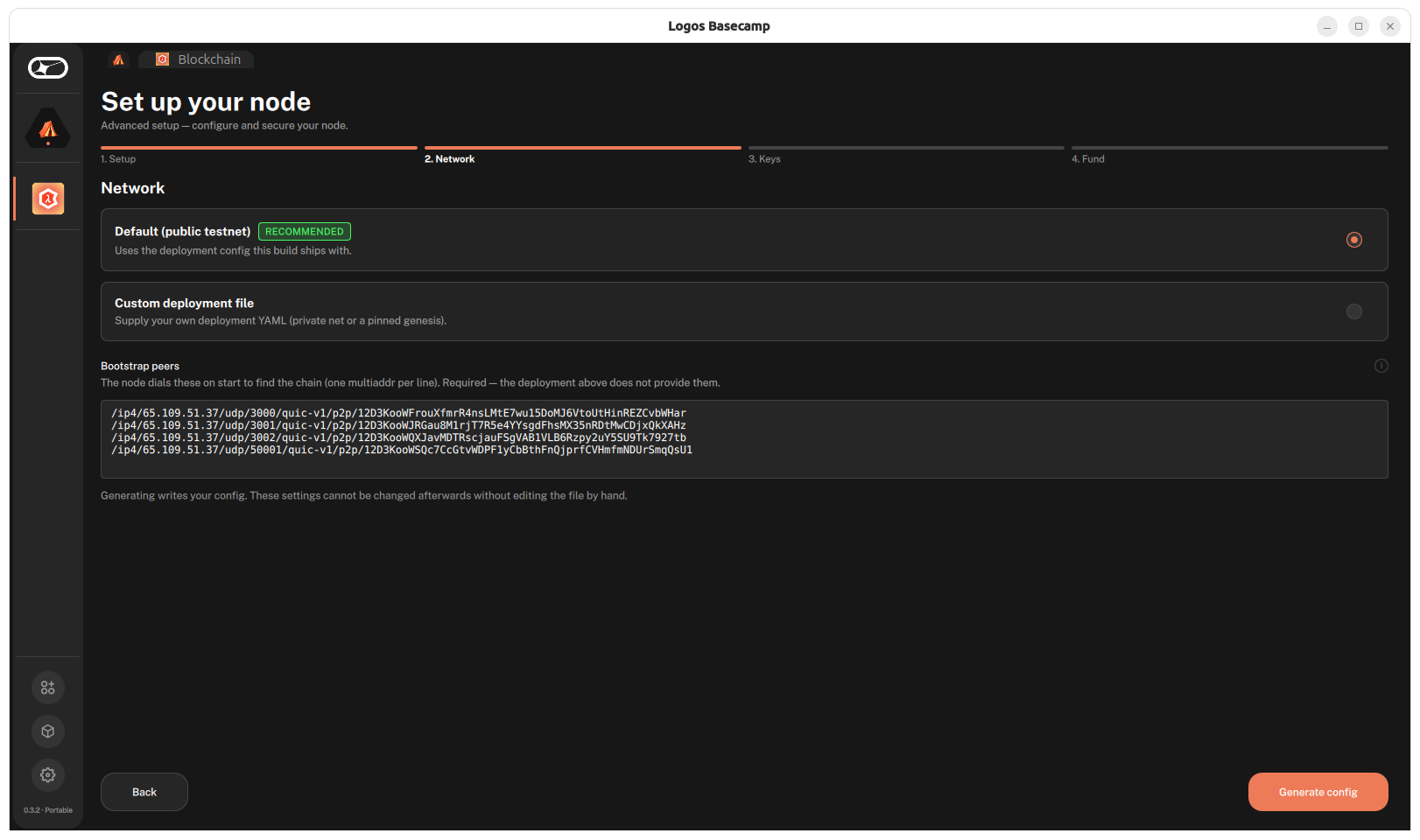

3. On 2. Network, leave Default (public testnet) selected. The Bootstrap peers field is already filled with the testnet peers built into the release. A custom deployment file or different bootstrap peers can also be provided via this page. Click Generate config to proceed.



   caution

   A config generated with an empty Bootstrap peers field produces a node that starts and reports success but never syncs. Make sure the peers above are present before generating.

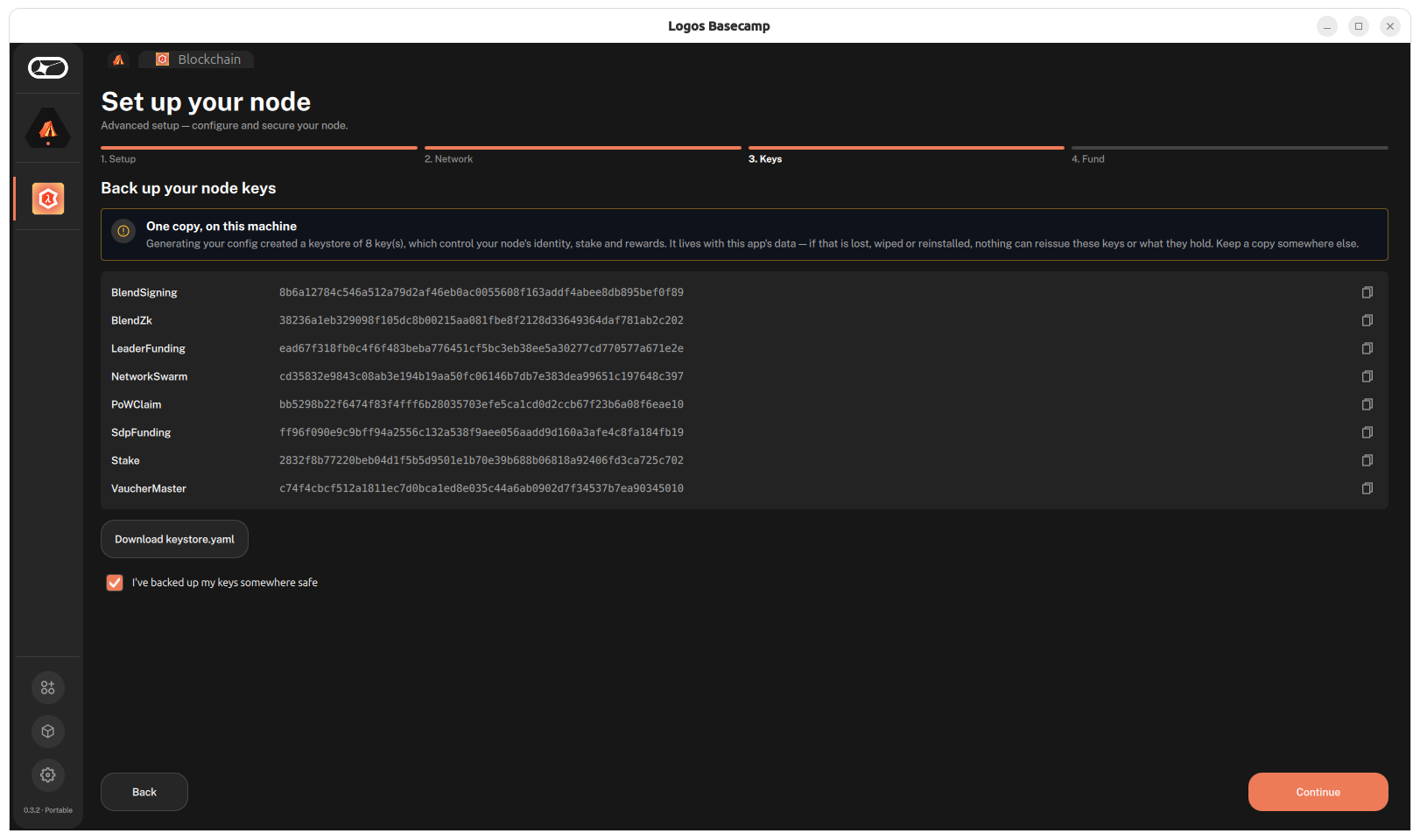

4. On 3. Keys, click Download keystore.yaml and save the copy somewhere safe. Select I've backed up my keys somewhere safe, then click Continue.

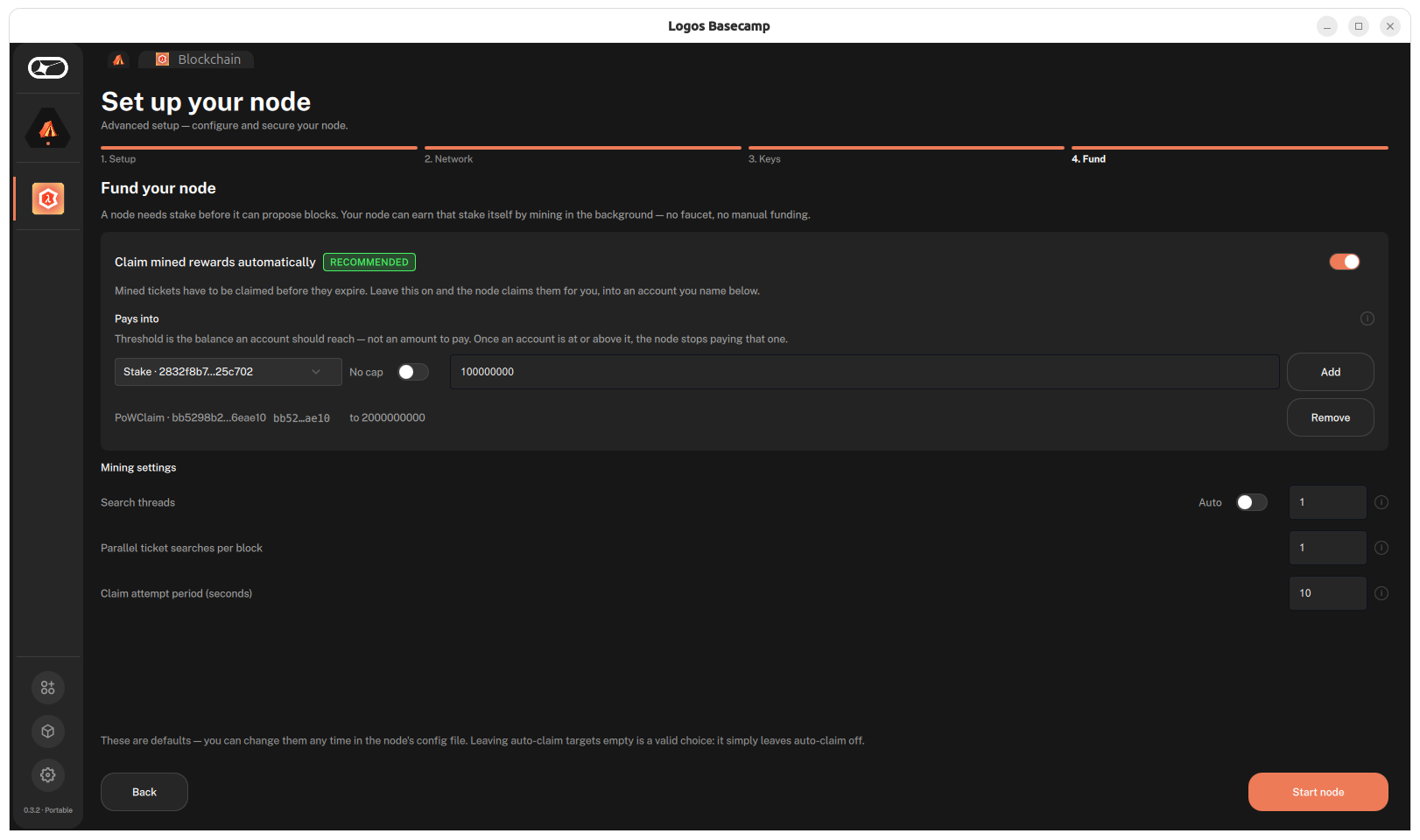

5. To participate in consensus, your node needs some testnet notes. Notes can be obtained by engaging in PoW mining. On 4. Fund, choose whether the node claims mined rewards automatically:

   • Leave Claim mined rewards automatically on. With this approach, your node will repeatedly claim more notes until the target accounts reach their cap. Pays into already lists the target from your generated config: your PoWClaim account, with No cap. To pay into another account as well, choose it, set a threshold or switch on No cap, and click Add.
   • Alternatively, switch it off. You can still mine with the Fund button and claim rewards yourself from the Mining tab.



   tip

   Keeping all the defaults on this page is the recommended approach.

6. Click Start node. The app saves your mining settings, starts the node, and opens the node view.

Step 3: Verify that the node is syncing

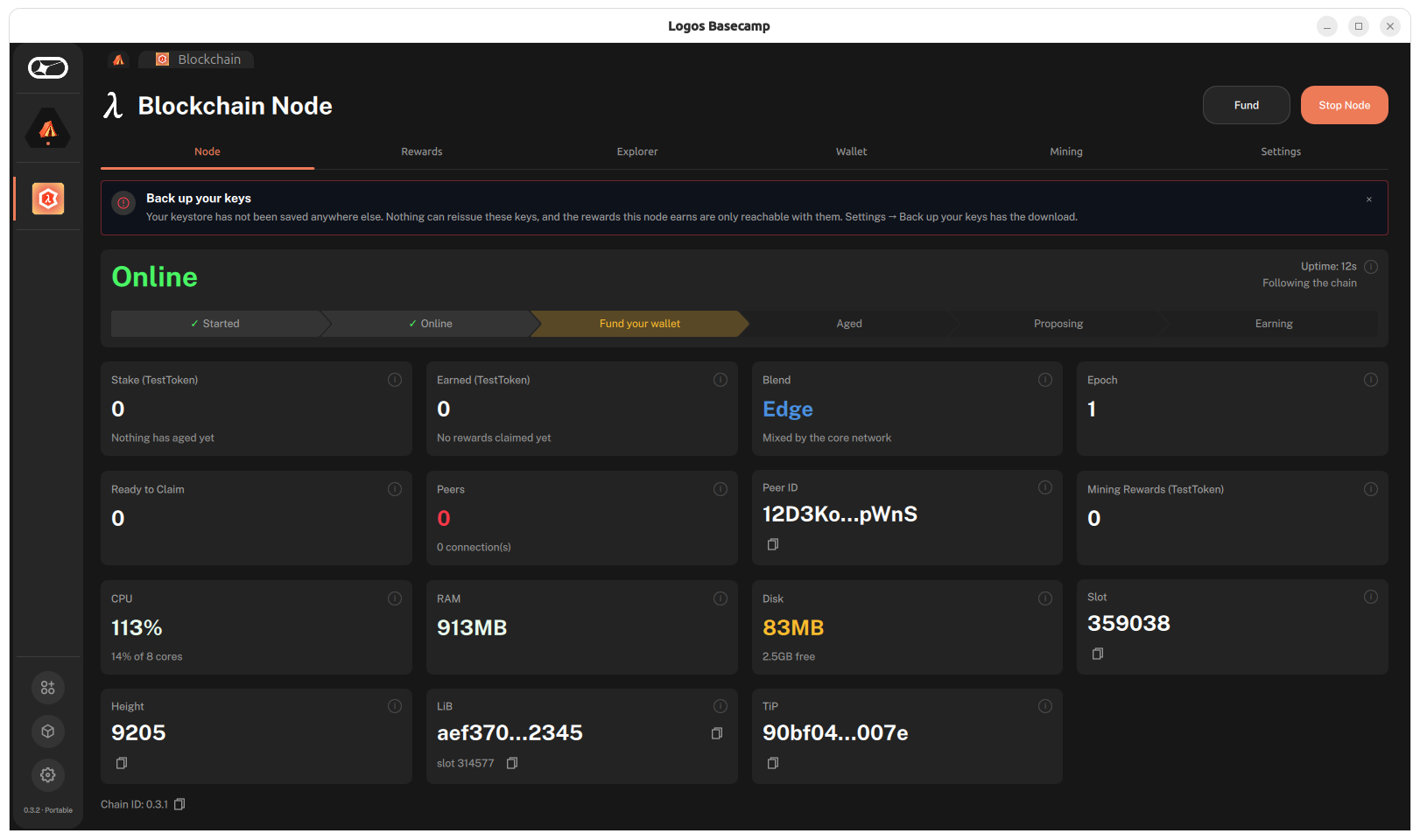

The Node tab shows the node's consensus status as a headline, with a lifecycle lane underneath it (Started, Online, Funded, Aged, Proposing, Earning) that lights up one stage at a time.

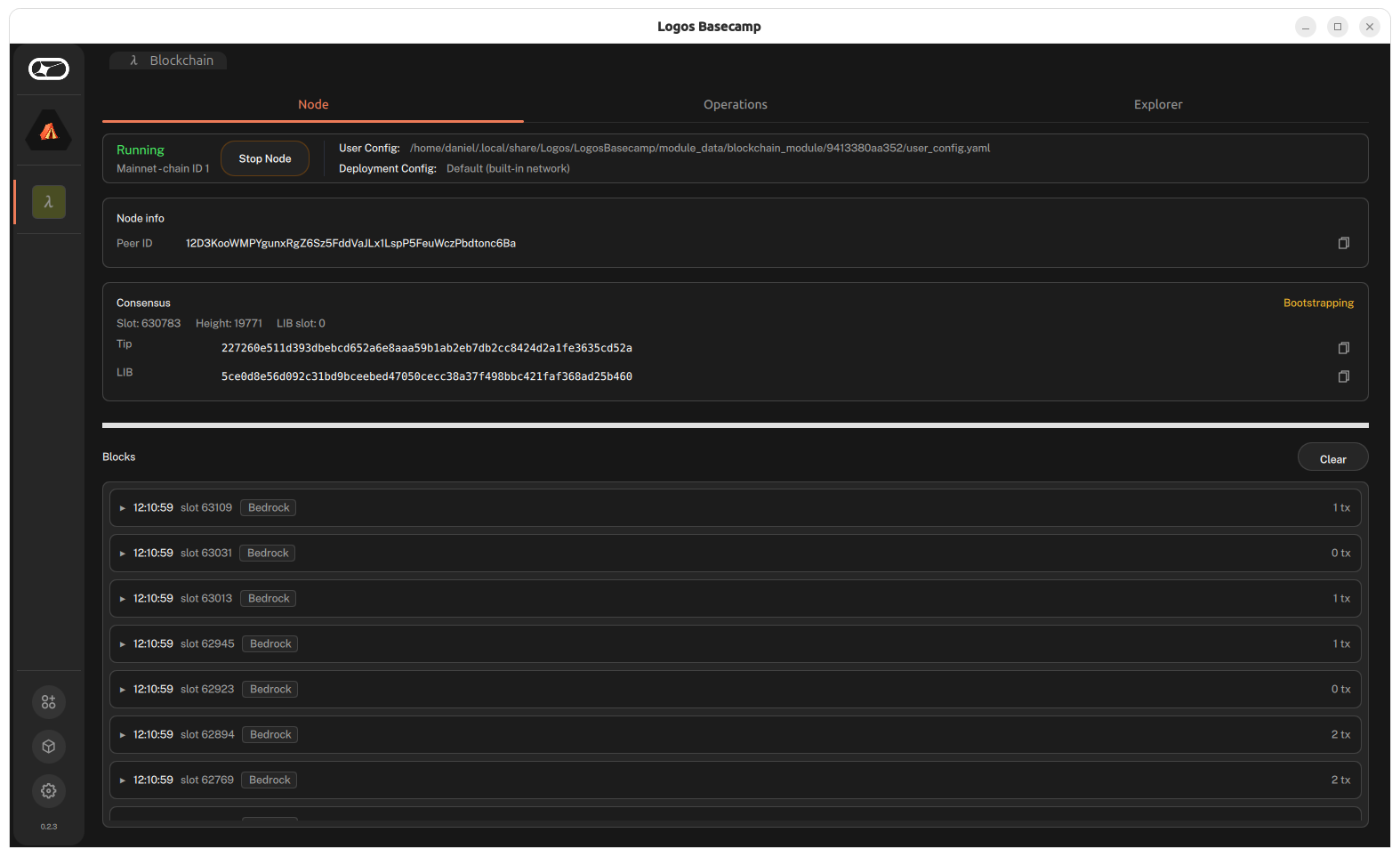

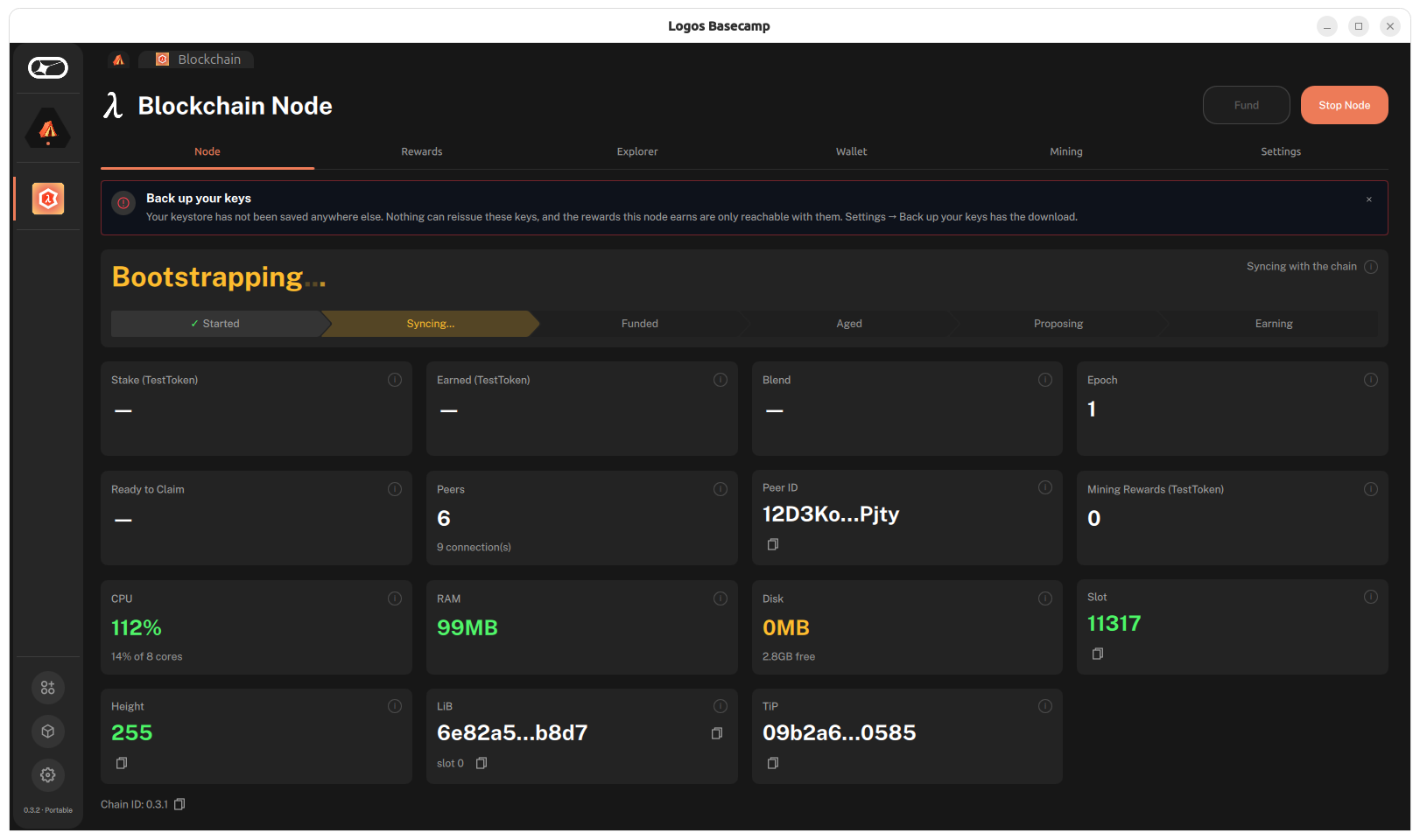

1. Watch the headline. It moves from Starting to Bootstrapping (Syncing with the chain) while the node catches up, then to Online (Following the chain).

note

If you were offline for a while, expect the node to sit in Bootstrapping while it catches up before it reports Online. A height that is far below the current slot during initial sync is normal.

1. Check the Peers tile. It shows the number of connected peers, and should be greater than 0.

2. Check the Height tile. Expect it to increase by about one block every 10 seconds once the node is Online. The timing is probabilistic, so some variance is normal.

• You can compare the height with the testnet block explorer.
• The Explorer tab lists each new block that this node sees from now on.

Step 4: Fund your node and propose blocks

A synced node validates the chain but does not propose blocks until its wallet holds testnet notes. Notes are obtained by PoW mining.

1. Wait until the node reaches Online mode. The Fund button at the top right stays disabled until then.

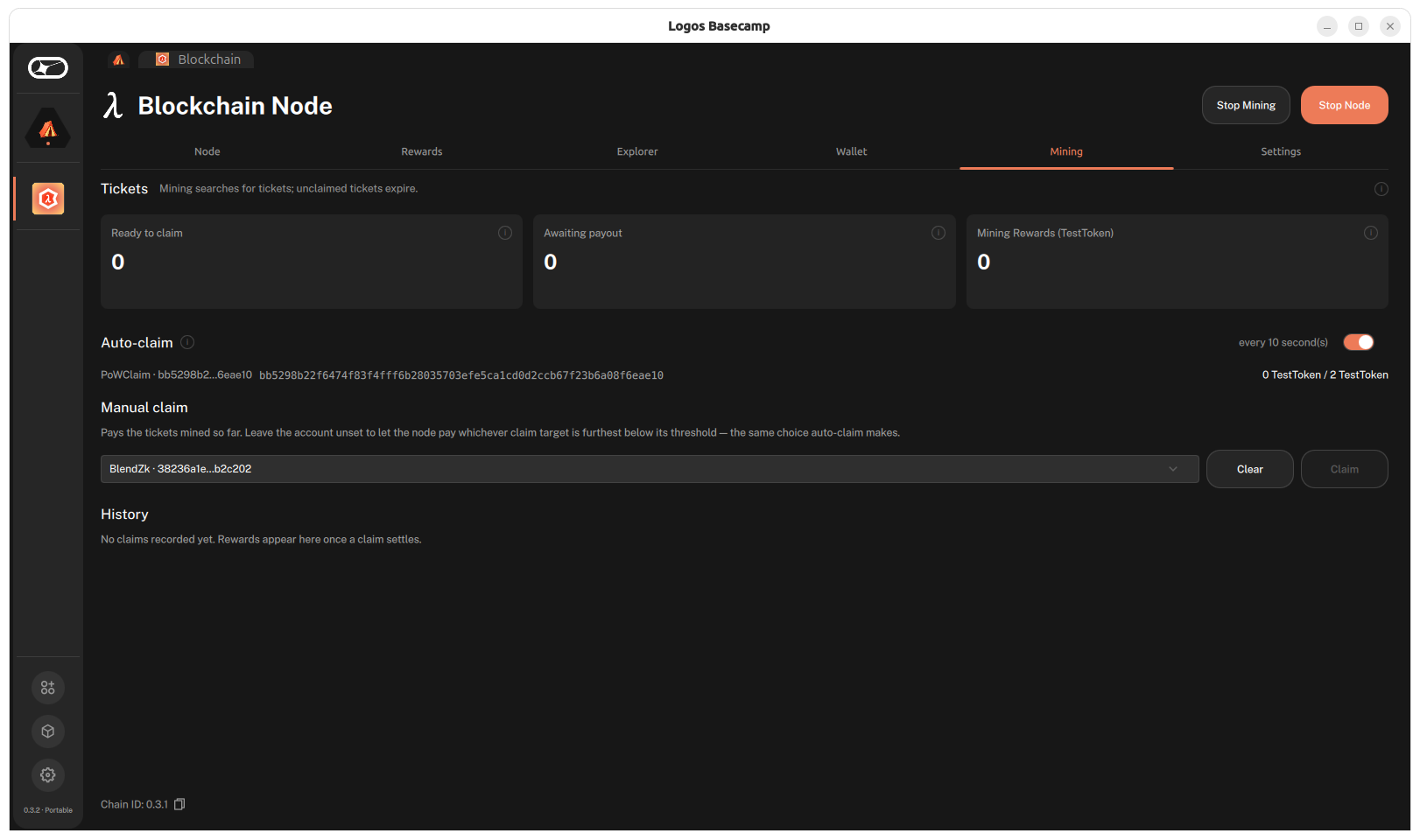

2. Click Fund. The node starts mining in the background and the button changes to Stop Mining.

   warning

   Mining uses CPU for as long as it runs. It does not stop by itself: click Stop Mining when you have enough funds.

3. Open the Mining tab to follow mined tickets. A ticket pays nothing until it is claimed, and expires if it never is claimed.

   • By default, the node claims tickets for you and pays them into your PoWClaim account, whether you used Quick start or step-by-step setup: the generated config lists that account as an auto-claim target.
   • If you switched auto-claim off during step-by-step setup, claim tickets yourself under Manual claim.
   • The Mining Rewards tile on the Node tab shows how much has been claimed so far.

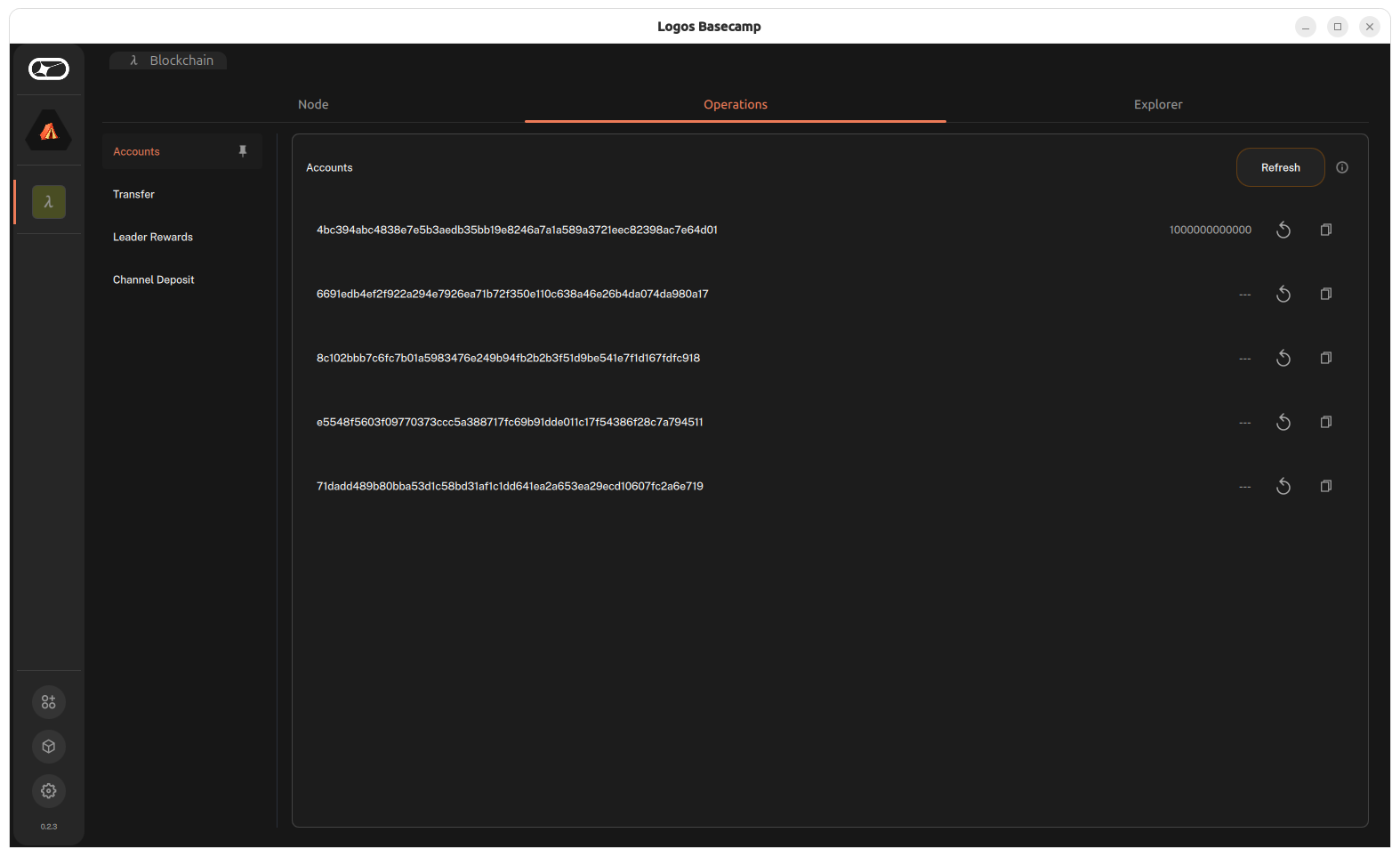

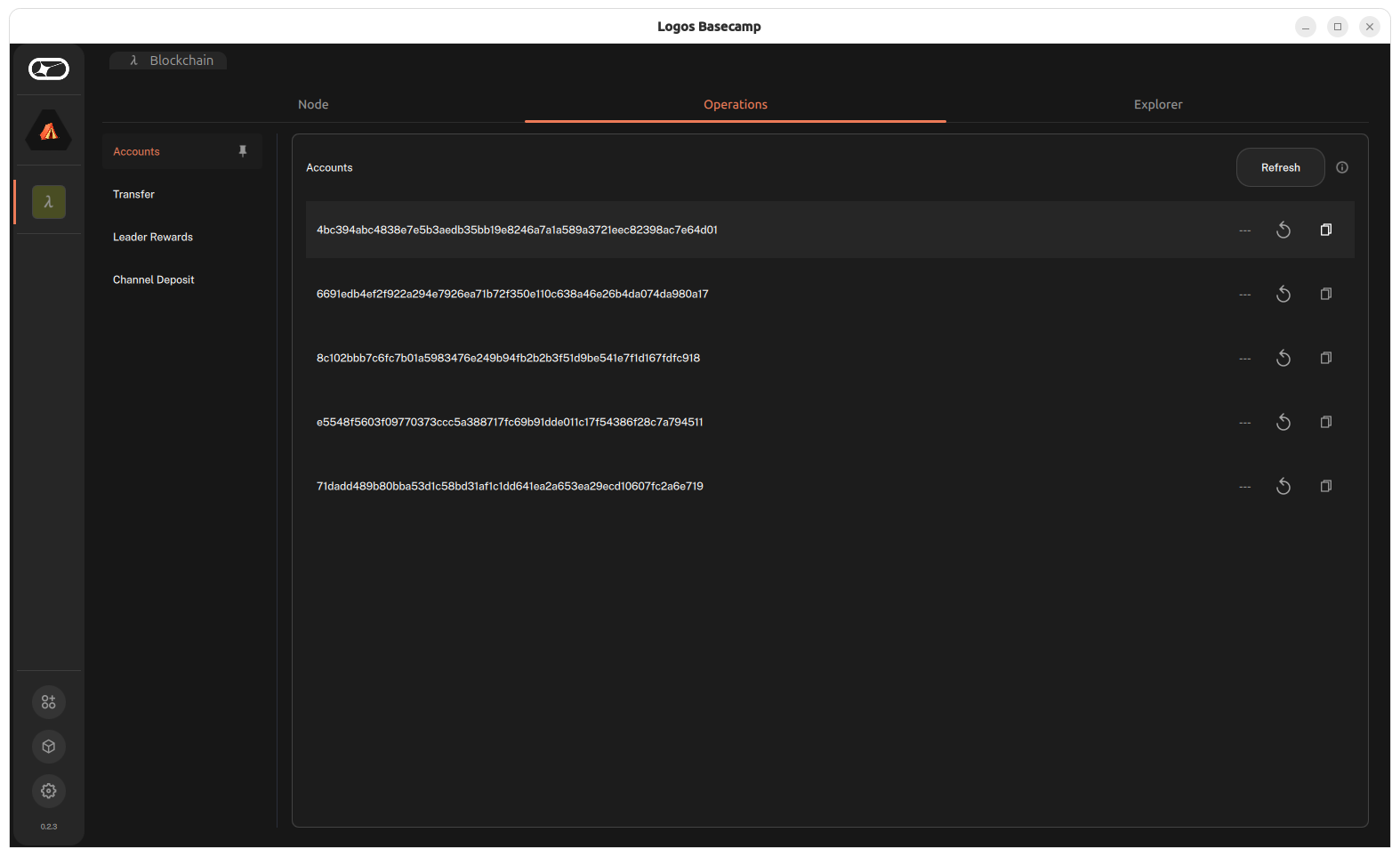

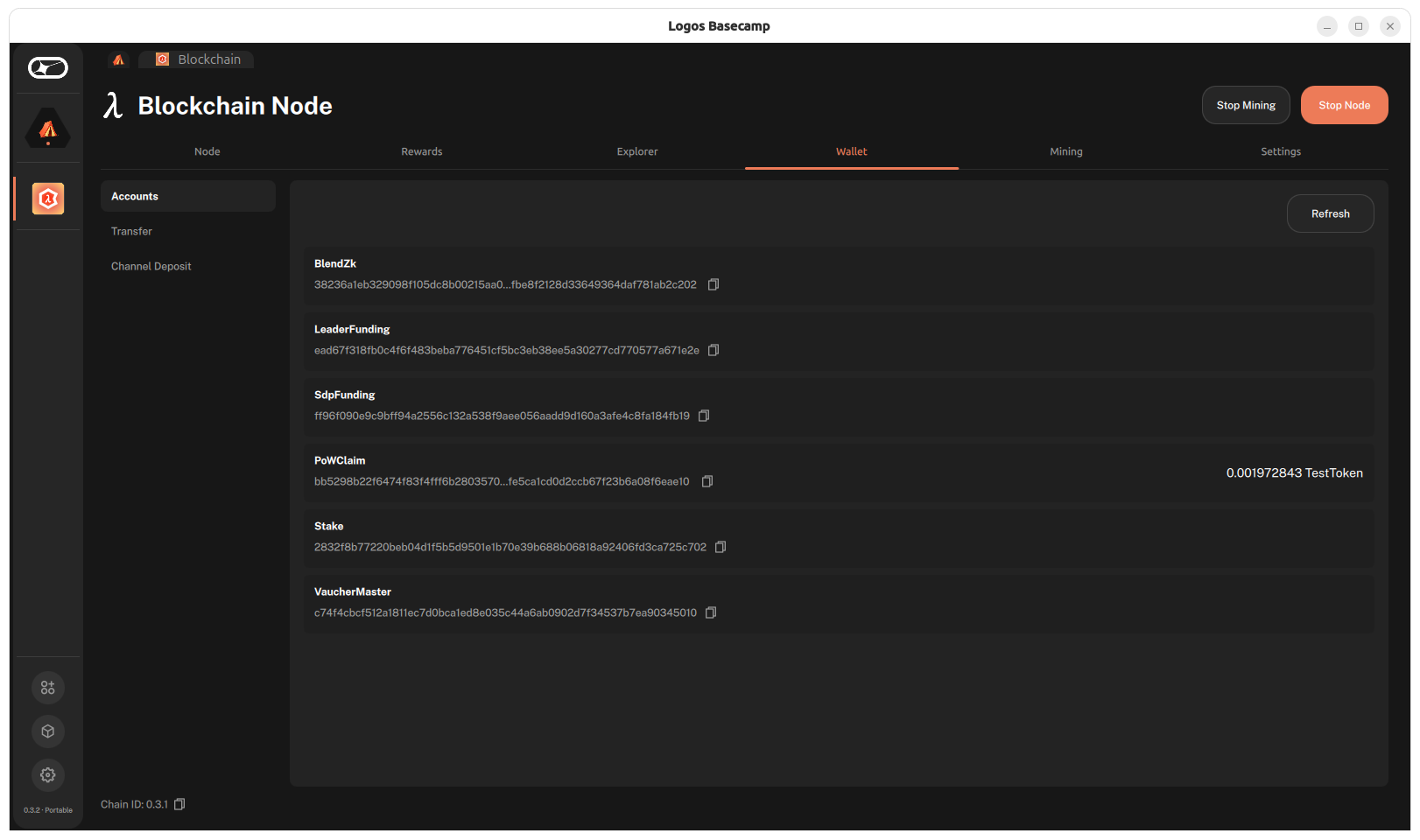

4. Open the Wallet tab, then click Accounts. Click Refresh and confirm the balance of your PoWClaim account, in TestToken.



5. Once the wallet is funded, the Stake tile on the Node tab shows the value of the notes that have aged into the leadership lottery. Tokens can take up to two epochs (3.5 hours) to become eligible for consensus. After that, the node takes part in the consensus lottery automatically and starts proposing blocks. Confirm that your node is participating by checking that the headline has reached Aged and Proposing

   info

   Block proposal is probabilistic. Your node will not propose on every slot; participation depends on your stake relative to total active stake in the network.

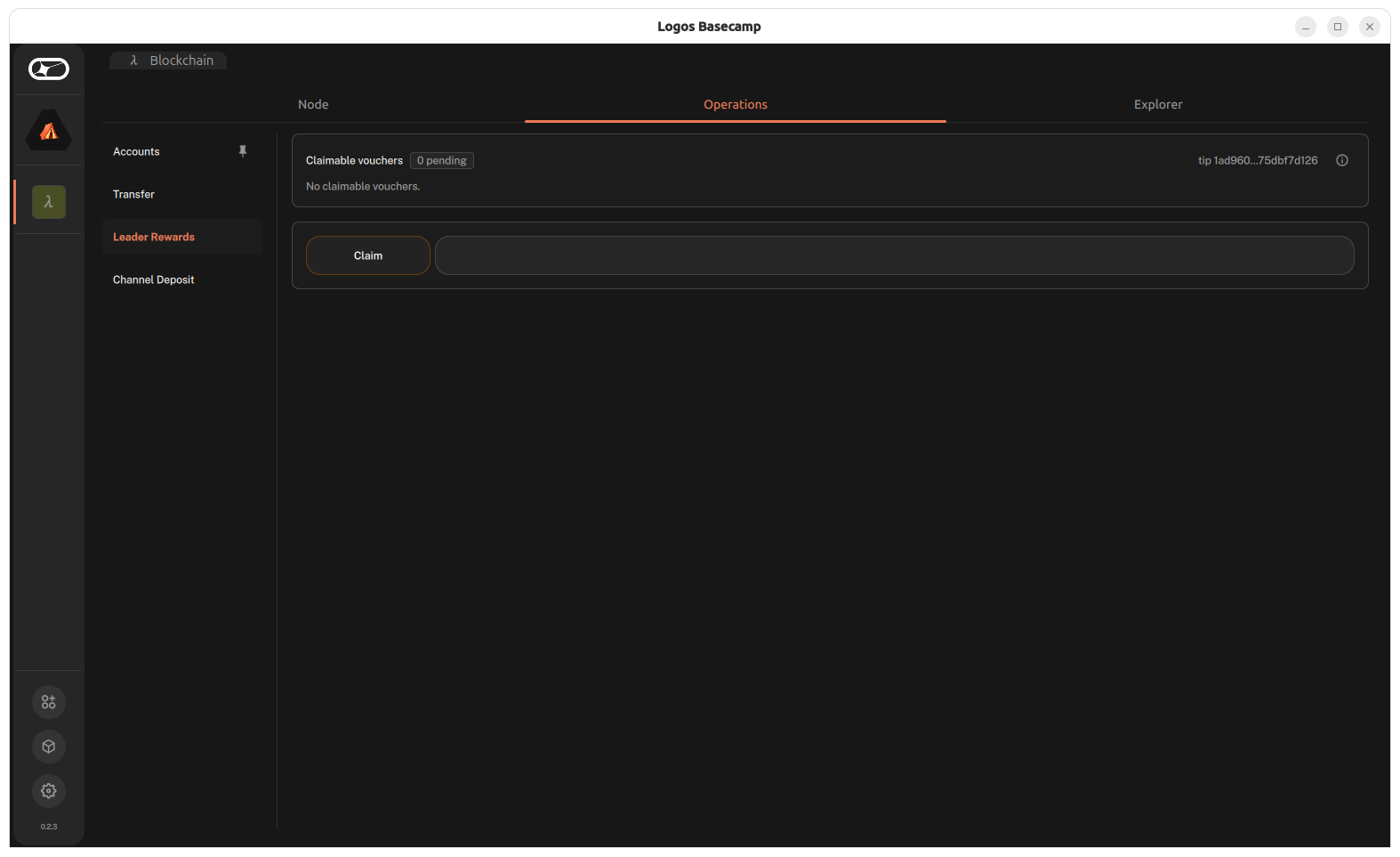

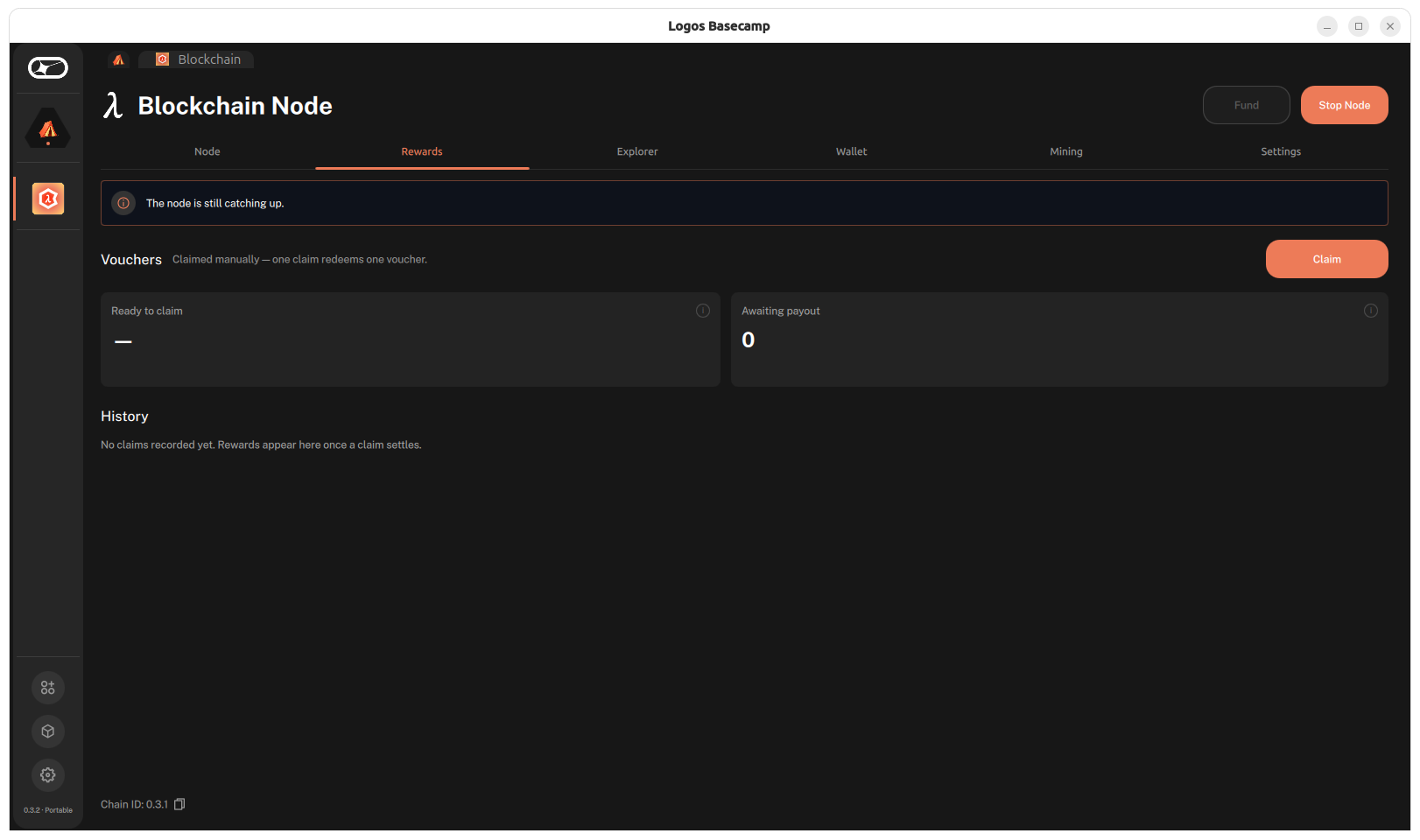

6. Rewards appear under the Rewards, where Claim redeems them into your wallet.



   note

   Participating in the Blend network as a Core node requires a separate locked note (staked funds) and does not affect block proposing. See Join the Blend network as a Core node.

Step 6: Keeping your node running

The node runs only while Basecamp is open, and it does not resume automatically after a restart. To restart your node, reopen Basecamp, open the blockchain module, and select Start Node again. For an unattended, always-on node, use the CLI setup with a service manager instead.

Troubleshooting

The welcome screen only offers Set up your node

The app hides Quick start when it has no bootstrap peers: either it could not read the peers built into its metadata.json, or it was built from master, which has none. Click Set up your node and follow Step-by-step setup. On 2. Network, the Bootstrap peers field will be empty: copy the testnet peers from the Initialize Your Node section of the Logos Blockchain release notes and paste them one per line. The release notes show them inside a CLI command: keep only the multiaddrs themselves, such as /ip4/<ip>/udp/<port>/quic-v1/p2p/<peer-id>, with no quotes, brackets, or commas.

A dialogue says Your config is out of date

The config was written for an older release, so the node won't start with it. Testnet v0.3 starts a new chain, so configs from Testnet v0.2 need updating. Click Update config: the app rebuilds the config for this release and keeps your settings and keys. If the dialogue reads This config can't be updated instead, there is no keystore next to the config, and Start fresh creates a new config with a new set of keys.

The headline stays in Bootstrapping mode

The node is still catching up, and the line beside the headline says why:

• Catching up — replaying stored blocks. or Syncing with the chain: wait. A first sync can take a while.
• No block progress for 10 minutes — the node may have lost its peers. Try stopping and starting it.: click Stop Node, then Start Node.
• Genesis is … — the node can't finish syncing until then. Its config likely points at the wrong network.: the config was generated for another network. In Settings, click Start a new node to generate a config for the public testnet.

If the node is stuck or will not start at all, the Reset the database card in Settings shows the database folder. Stop the node, delete that folder, then start the node again. It re-syncs the chain from its peers, and your keys and config files are untouched.

The headline reads Node stopped or Disconnected

• Node stopped means the node process stopped unexpectedly. Click Start Node. If the same thing happens again, restart the app.
• Disconnected means the app lost contact with the node service. Restart the app.
